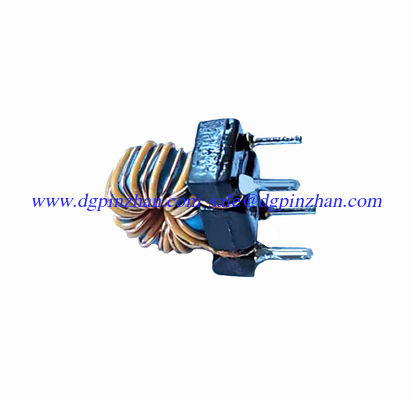

PZ-TBM633V vertical MiZn 500uH Min toroidal Line Common mode choke Applied to LED lighting power supply

PZ-TBM633V vertical MiZn 500uH Min toroidal Line Common mode choke Applied to LED lighting power supply

China PZ-TBM633V vertical  MiZn 500uH Min toroidal Line Common mode choke Applied to LED  lighting power supply supplier
PZ-TBM633V vertical  MiZn 500uH Min toroidal Line Common mode choke Applied to LED  lighting power supply supplier PZ-TBM633V vertical  MiZn 500uH Min toroidal Line Common mode choke Applied to LED  lighting power supply supplier PZ-TBM633V vertical  MiZn 500uH Min toroidal Line Common mode choke Applied to LED  lighting power supply supplier PZ-TBM633V vertical  MiZn 500uH Min toroidal Line Common mode choke Applied to LED  lighting power supply supplier PZ-TBM633V vertical  MiZn 500uH Min toroidal Line Common mode choke Applied to LED  lighting power supply supplier

Large Image :  PZ-TBM633V vertical MiZn 500uH Min toroidal Line Common mode choke Applied to LED lighting power supply

Product Details:

Place of Origin: China
Brand Name: P&Z Electronics
Certification: ISO9001:2015
Model Number: PZ-TBM633 vertical

Payment & Shipping Terms:

Minimum Order Quantity: 5000PCS
Price: Ask us
Packaging Details: Blister+Carton or Pearl cotton + carton
Delivery Time: 20 ~30days
Payment Terms: T/T
Supply Ability: 100K/M
Detailed Product Description
Material: MiZn T633 Dimension:: 9.5*6.5*10
L: 500uH Current: 0.3A Max
DCR: 80mΩ Max Test Frequency: 1KHZ/0.25V

PZ-TBM633V vertical  MiZn 500uH Min toroidal Line Common mode choke Applied to LED  lighting power supplyPZ-TBM633V vertical  MiZn 500uH Min toroidal Line Common mode choke Applied to LED  lighting power supplyPZ-TBM633V vertical  MiZn 500uH Min toroidal Line Common mode choke Applied to LED  lighting power supply

PZ-TBM633V vertical  MiZn 500uH Min toroidal Line Common mode choke Applied to LED  lighting power supply

Properties Test conditions Value Unit Tolerance
Inductance 1KHZ/0.25V 500 uH Min
DC Resistance @25 °C 80 Max
Rated Current @70 °C 0.3 A Max
Rated Voltage(UR) 50 Hz 250 V/(AC) Max
Insulation Test Voltage(UT) 50 Hz/ 5 mA/ 3 sec. 1500 V/(AC) Pass

Characteristics

  • Core material: Mickel-Zinc Ferrite
  • Broadband filterring due to low capacitance winding technique
  • High suppression of asymmetrical interferences also at low frequency range
  • Very compact design
  • Highest possible rated current by small size
  • Operating temperature: –40 ºC to +125 ºC

Applications

  • Power electronics
  • Power line in- and output filter
  • Filterring of devices without any ground connection
  • Suppression of radio interferences in motors
  • Suppression of common mode noise

Acceptable customers design custom
