PZ-TBM953H Series Horizontal MiZn 400uH~1mH toroidal Line Common mode choke Applied to LED T8 lighting power supply

China PZ-TBM953H Series Horizontal MiZn 400uH~1mH toroidal Line Common mode choke Applied to LED T8 lighting power supply supplier
PZ-TBM953H Series Horizontal MiZn 400uH~1mH toroidal Line Common mode choke Applied to LED T8 lighting power supply supplier PZ-TBM953H Series Horizontal MiZn 400uH~1mH toroidal Line Common mode choke Applied to LED T8 lighting power supply supplier PZ-TBM953H Series Horizontal MiZn 400uH~1mH toroidal Line Common mode choke Applied to LED T8 lighting power supply supplier PZ-TBM953H Series Horizontal MiZn 400uH~1mH toroidal Line Common mode choke Applied to LED T8 lighting power supply supplier

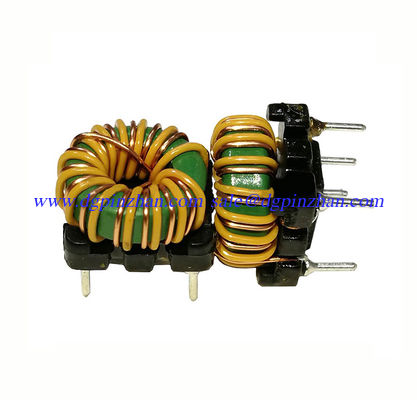

Large Image :  PZ-TBM953H Series Horizontal MiZn 400uH~1mH toroidal Line Common mode choke Applied to LED T8 lighting power supply

Product Details:

Place of Origin: China
Brand Name: P&Z Electronics
Certification: ISO9001:2015
Model Number: PZ-TBM953H Series

Payment & Shipping Terms:

Minimum Order Quantity: 5000PCS
Price: Ask us
Packaging Details: Blister+Carton or Pearl cotton + carton
Delivery Time: 20 ～30days
Payment Terms: T/T
Supply Ability: 100Ｋ/M
Contact Now
Detailed Product Description
Material: MiZn T953 Dimension:: 11＊11＊10
L: 400uH~1mH Current: 1.0~1.2Ａ Max
ＤＣＲ: 45~90mΩ Max Test Frequency: 1KHZ/0.25V

PZ-TBM953H Series Horizontal MiZn 400uH~1mH toroidal Line Common mode choke Applied to LED T8 lighting power supplyPZ-TBM953H Series Horizontal MiZn 400uH~1mH toroidal Line Common mode choke Applied to LED T8 lighting power supply

PZ-TBM953H Series Horizontal MiZn 400uH~1mH toroidal Line Common mode choke Applied to LED T8 lighting power supply

Part Code Inductance Test conditions DC-Resistance Rated Current
PZ-TBM953H-401M 400uH Min 1KHZ/0.25V 45mΩ Max 1.2A Max
PZ-TBM953H-701M 700uH Min 1KHZ/0.25V 56mΩ Max 1.1A Max
PZ-TBM953H-102M 1mH Min 1KHZ/0.25V 90mΩ Max 1.0A Max

Characteristics

  • Core material: Mickel-Zinc Ferrite
  • Broadband filterring due to low capacitance winding technique
  • High suppression of asymmetrical interferences also at low frequency range
  • Very compact design
  • Highest possible rated current by small size
  • Operating temperature: –40 ºC to +125 ºC

Applications

  • Power electronics
  • Power line in- and output filter
  • Filterring of devices without any ground connection
  • Suppression of radio interferences in motors
  • Suppression of common mode noise

♦Acceptable customers design custom
