PZ-EE16V-122K Vertical Led power drive transformer Widening the core to increase transformer power Low height 15mm Max

China PZ-EE16V-122K Vertical Led power drive transformer Widening the core to increase transformer power Low height 15mm Max supplier
PZ-EE16V-122K Vertical Led power drive transformer Widening the core to increase transformer power Low height 15mm Max supplier PZ-EE16V-122K Vertical Led power drive transformer Widening the core to increase transformer power Low height 15mm Max supplier PZ-EE16V-122K Vertical Led power drive transformer Widening the core to increase transformer power Low height 15mm Max supplier PZ-EE16V-122K Vertical Led power drive transformer Widening the core to increase transformer power Low height 15mm Max supplier PZ-EE16V-122K Vertical Led power drive transformer Widening the core to increase transformer power Low height 15mm Max supplier

Large Image :  PZ-EE16V-122K Vertical Led power drive transformer Widening the core to increase transformer power Low height 15mm Max

Product Details:

Place of Origin: Dongguan, China
Brand Name: P&Z
Certification: ISO9001:2015
Model Number: PZ-EE1V-122K

Payment & Shipping Terms:

Minimum Order Quantity: 5000PCS
Price: To be confirmed
Packaging Details: Blister+Carton
Delivery Time: around 3-4 Weeks
Payment Terms: T/T
Supply Ability: 1KK
Contact Now
Detailed Product Description
Material: Ferrite Core Dimension: 20*27*13
Installation Method: Horizontal Through Hole

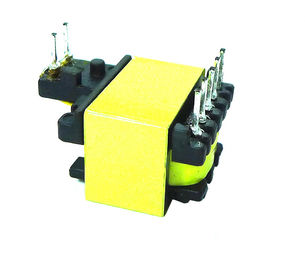

EE16 Vertical LED power supply drive transformer

PZ-EE16V-122K Vertical Led power drive transformer Widening the core to increase transformer power Low height 15mm Max

PZ-EE16V-122K Vertical Led power drive transformer Widening the core to increase transformer power Low height 15mm Max

PZ-EE16V-122K Vertical Led power drive transformer Widening the core to increase transformer power Low height 15mm Max

Dimensions:

   PZ-EE16V-122K Vertical Led power drive transformer Widening the core to increase transformer power Low height 15mm Max





Characteristics

  • Universal, US or European offline input voltage
  • Small size
  • Low leakage inductance
  • Multiple-output options

Applications

  • Industrial controls
  • USB chargers
  • Metering
  • Process controls
  • Factory automation
  • Security systems
  • Garage door opener auxiliary supplies



Properties Test conditions Value Unit Tolerance
Inductance:5-4 1KHZ/1V 1200 uH ±10%
Leakage:5-4 10KHz/0.25V shor other 60 uH Max
DC-resistance:5-4 @25 °C 1.5 Ω Max
DC-resistance:7-6 @25 °C 25 mΩ Max
DC-resistance:2-1 @25 °C 600 mΩ Max
Turns ratio: N3:N1+N5 0.14:1 　 ±3%
Turns ratio: N4:N1+N5 0.06:1 　 ±3%
Hi-pot:Pri-Sec AC2000V/3mA/3S V/(AC) Pass
Hi-pot:Pri/Sec-Core AC1000V/3mA/3S V/(AC) Pass



The Applications is a high power factor QR Flyback Converter:

VIN: 90VAC to 277VAC

VOUT: 12V to 24V

VAUX: 8V to 16V

P Out: 10W

P IN: 12-15W

Switching Freq.: 35 – 180 kHz

Download the attached PDF file to view, PDF data can be customized according to customer requirements
