PZ-ER3540 980uH vertical Safety high frequency Stable 40 ferrite material Applied to range hood appliances

China PZ-ER3540 980uH vertical Safety high frequency Stable 40 ferrite material Applied to range hood appliances supplier
PZ-ER3540 980uH vertical Safety high frequency Stable 40 ferrite material Applied to range hood appliances supplier PZ-ER3540 980uH vertical Safety high frequency Stable 40 ferrite material Applied to range hood appliances supplier PZ-ER3540 980uH vertical Safety high frequency Stable 40 ferrite material Applied to range hood appliances supplier PZ-ER3540 980uH vertical Safety high frequency Stable 40 ferrite material Applied to range hood appliances supplier PZ-ER3540 980uH vertical Safety high frequency Stable 40 ferrite material Applied to range hood appliances supplier

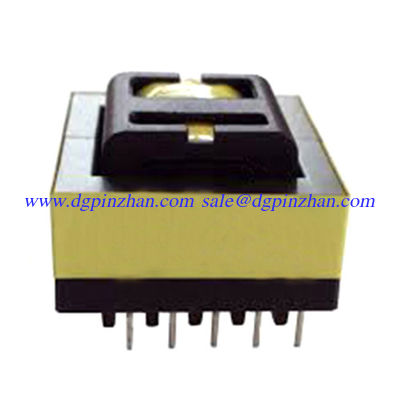

Large Image :  PZ-ER3540 980uH vertical Safety high frequency Stable 40 ferrite material Applied to range hood appliances

Product Details:

Place of Origin: Dongguan, China
Brand Name: P&Z
Certification: ISO9001:2015
Model Number: PZ-ER3540H-981K

Payment & Shipping Terms:

Minimum Order Quantity: 5000PCS
Price: To be confirmed
Packaging Details: Blister + Carton
Delivery Time: around 3-4 Weeks
Payment Terms: T / T in advance
Supply Ability: 100K
Contact Now
Detailed Product Description
Core Material: 40 Dimensions: [mm: 38.5*46*28
Installation Method: Horizontal

 ER3540 980uH Horizontal high frequency transformer








PZ-ER3540 980uH vertical Safety high frequency Stable 40 ferrite material Applied to range hood appliancesPZ-ER3540 980uH vertical Safety high frequency Stable 40 ferrite material Applied to range hood appliancesPZ-ER3540 980uH vertical Safety high frequency Stable 40 ferrite material Applied to range hood appliances







Dimensions: [mm]

PZ-ER3540 980uH vertical Safety high frequency Stable 40 ferrite material Applied to range hood appliances



Characteristics

  • Through-Hole
  • Core Direction: Vertical and Horizontal
  • Functional & Reinforced Insulation

Applications

  • Offline
  • Lighting
  • DC/DC Converter
  • Industrial Controls
  • White Goods
  • Telecom
  • PFC
  • Charging
  • Stand-by Power

Electrical characteristics:

Properties Test conditions Value Unit Tolerance
Inductance:6-7 10KHZ/0.3V 980 uH ±10%
Leakage :6-7 10KHZ/0.3V other short 155 uH Max
DC-resistance:6-7 @25 °C 110 mΩ Max
DC-resistance:3-4 @25 °C 180 mΩ Max
DC-resistance:12-10 @25 °C 15 mΩ Max
DC-resistance:11-13 @25 °C 15 mΩ Max
DC-resistance:9-14 @25 °C 180 mΩ Max
Turns ratio: N2:N1 0.14:1 　 ±1%
Turns ratio: N3/N4:N1 0.215:1 　 ±1%
Turns ratio: N5:N1 0.095:1 　 ±1%
Hi-pot:Pri-Sec AC3750V/3mA/3S V/(AC) Pass
Hi-pot:Pri/Sec-Core AC1500V/3mA/3S V/(AC) Pass



♦Acceptable customers design custom
