PZ-ER42 2000uH vertical Safety high frequency Stable 40 ferrite material Applied to industrial power supplies

PZ-ER42 2000uH vertical Safety high frequency Stable 40 ferrite material Applied to industrial power supplies

China PZ-ER42 2000uH vertical Safety high frequency Stable 40 ferrite material Applied to industrial power supplies supplier
PZ-ER42 2000uH vertical Safety high frequency Stable 40 ferrite material Applied to industrial power supplies supplier PZ-ER42 2000uH vertical Safety high frequency Stable 40 ferrite material Applied to industrial power supplies supplier PZ-ER42 2000uH vertical Safety high frequency Stable 40 ferrite material Applied to industrial power supplies supplier PZ-ER42 2000uH vertical Safety high frequency Stable 40 ferrite material Applied to industrial power supplies supplier PZ-ER42 2000uH vertical Safety high frequency Stable 40 ferrite material Applied to industrial power supplies supplier

Large Image :  PZ-ER42 2000uH vertical Safety high frequency Stable 40 ferrite material Applied to industrial power supplies

Product Details:

Place of Origin: Dongguan, China
Brand Name: P&Z
Certification: ISO9001:2015
Model Number: PZ-ER42V-202M

Payment & Shipping Terms:

Minimum Order Quantity: 5000PCS
Price: To be confirmed
Packaging Details: Blister + Carton
Delivery Time: around 3-4 Weeks
Payment Terms: T / T in advance
Supply Ability: 100K
Detailed Product Description
Core Material: 40 Dimensions: [mm: 45*33*49
Installation Method: Horizontal

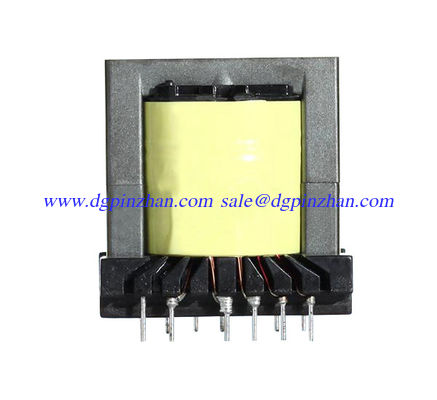

 ER42 2000uH Horizontal high frequency transformer








PZ-ER42 2000uH vertical Safety high frequency Stable 40 ferrite material Applied to industrial power suppliesPZ-ER42 2000uH vertical Safety high frequency Stable 40 ferrite material Applied to industrial power suppliesPZ-ER42 2000uH vertical Safety high frequency Stable 40 ferrite material Applied to industrial power supplies







Dimensions: [mm]

PZ-ER42 2000uH vertical Safety high frequency Stable 40 ferrite material Applied to industrial power supplies



Characteristics

  • Through-Hole
  • Core Direction: Vertical and Horizontal
  • Functional & Reinforced Insulation

Applications

  • Offline
  • Lighting
  • DC/DC Converter
  • Industrial Controls
  • White Goods
  • Telecom
  • PFC
  • Charging
  • Stand-by Power

Electrical characteristics:

Properties Test conditions Value Unit Tolerance
Inductance:1-3 50KHZ/1V 2000 uH Min
Leakage:1-3 50KHZ/1V short other 10 uH Max
DC-resistance:1-3 @25 °C 480 Max
DC-resistance:6-7 @25 °C 210 Max
DC-resistance:13-11.12 @25 °C 15 Max
DC-resistance:8-14 @25 °C 16 Max
Turns ratio: N1:N2 1:1   ±3%
Turns ratio: N1:N3 0.5:1   ±3%
Turns ratio: N3:N4 1:1   ±3%
Turns ratio: N1:N5 0.19:1   ±3%
Hi-pot:Pri-Sec AC1500V/3mA/3S V/(AC) Pass
Hi-pot:Pri/Sec-Core AC500V/3mA/3S V/(AC) Pass



Acceptable customers design custom
