PZ-ER2510 1000uH vertical high frequency Applied to LED drive power Double winding primary sandwich winding
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Core Material: | 40 | Dimensions: [mm: | 29*20*12.5 |
|---|---|---|---|
| Installation Method: | Vertical |

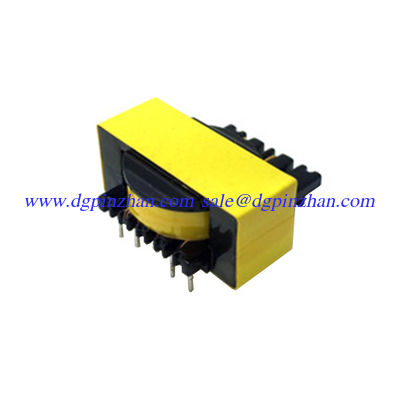

ER2510 1000uH vertical high frequency transformer
Dimensions: [mm]
Characteristics
- Through-Hole
- Core Direction: Vertical and Horizontal
- Functional & Reinforced Insulation
Applications
- Offline
- Lighting
- DC/DC Converter
- Industrial Controls
- White Goods
- Telecom
- PFC
- Charging
- Stand-by Power
Electrical characteristics:
| Properties | Test conditions | Value | Unit | Tolerance | ||
| Inductance:1-5 | 1KHZ/0.25V | 1000 | uH | ±10% | ||
| Turns ratio: | N2:N1 | 1.33:1 | ±1% | |||
| Turns ratio: | N3:N1 | 1:1 | ±1% | |||
| Turns ratio: | N4:N1 | 0.4:1 | ±1% | |||
| Hi-pot:Pri-Sec | AC3000V/3mA/3S | V/(AC) | Pass | |||
| Hi-pot:Pri/Sec-Core | AC1000V/3mA/3S | V/(AC) | Pass | |||
