PZ-RM8 Series 0.65mH High-frequency Transformer MnZn ferrite 40 material Materials comply with UL RoHS regulations

China PZ-RM8 Series 0.65mH High-frequency Transformer MnZn ferrite 40 material Materials comply with UL RoHS regulations supplier
PZ-RM8 Series 0.65mH High-frequency Transformer MnZn ferrite 40 material Materials comply with UL RoHS regulations supplier PZ-RM8 Series 0.65mH High-frequency Transformer MnZn ferrite 40 material Materials comply with UL RoHS regulations supplier PZ-RM8 Series 0.65mH High-frequency Transformer MnZn ferrite 40 material Materials comply with UL RoHS regulations supplier PZ-RM8 Series 0.65mH High-frequency Transformer MnZn ferrite 40 material Materials comply with UL RoHS regulations supplier PZ-RM8 Series 0.65mH High-frequency Transformer MnZn ferrite 40 material Materials comply with UL RoHS regulations supplier

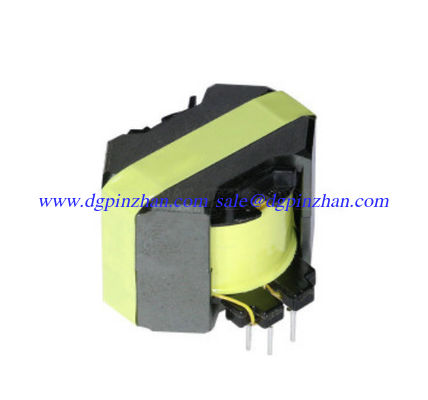

Large Image :  PZ-RM8 Series 0.65mH High-frequency Transformer MnZn ferrite 40 material Materials comply with UL RoHS regulations

Product Details:

Place of Origin: Dongguan, China
Brand Name: P&Z
Certification: ISO9001:2015
Model Number: PZ-RM8-651K

Payment & Shipping Terms:

Minimum Order Quantity: 5000PCS
Price: To be confirmed
Packaging Details: Blister + Carton
Delivery Time: around 3-4 Weeks
Payment Terms: T / T in advance
Supply Ability: 100K
Contact Now
Detailed Product Description
Core Material: 40 Dimensions: [mm: 26*28*19
Coil Number: Autotransformer

.RM8 Series High-frequency Transformer





PZ-RM8 Series 0.65mH High-frequency Transformer MnZn ferrite 40 material Materials comply with UL RoHS regulationsPZ-RM8 Series 0.65mH High-frequency Transformer MnZn ferrite 40 material Materials comply with UL RoHS regulationsPZ-RM8 Series 0.65mH High-frequency Transformer MnZn ferrite 40 material Materials comply with UL RoHS regulationsPZ-RM8 Series 0.65mH High-frequency Transformer MnZn ferrite 40 material Materials comply with UL RoHS regulations



Dimensions: [mm]

PZ-RM8 Series 0.65mH High-frequency Transformer MnZn ferrite 40 material Materials comply with UL RoHS regulations



Characteristics

  • Through-Hole
  • Core Direction: Vertical
  • Functional Insulation
  • Magnetic shielding effect
  • Strong anti-jamming capability
  • Magnetic flux leakage of small
  • Low stray capacitance.

Applications

  • Lighting
  • Metering
  • DC/DC Converter
  • Industrial Controls
  • White Goods
  • Telecom
  • CMC
  • PFC

Electrical characteristics:



Properties Test conditions Value Unit Tolerance
Inductance:6-8 10KHZ/0.3V 650 uH ±10%
DC-resistance:6-8 @25 °C 580 mΩ 　Max
DC-resistance:1-12 @25 °C 590 mΩ 　Max
Turns ratio: N2:N1 1.5:1 　 ±1%
Turns ratio: N3:N1 0.3:1 　 ±1%
Hi-pot:Pri-Sec AC1500V/5mA/3S V/(AC) Pass
Hi-pot:Pri/Sec-Core AC500V/5mA/3S V/(AC) Pass

♦Acceptable customers design custom
