PZ-ETD34H-35M Horizontal High power, high current,Inverter power supply transformer Output copper foil winding UL RoHS

China PZ-ETD34H-35M Horizontal High power, high current,Inverter power supply transformer Output copper foil winding UL RoHS supplier
PZ-ETD34H-35M Horizontal High power, high current,Inverter power supply transformer Output copper foil winding UL RoHS supplier PZ-ETD34H-35M Horizontal High power, high current,Inverter power supply transformer Output copper foil winding UL RoHS supplier PZ-ETD34H-35M Horizontal High power, high current,Inverter power supply transformer Output copper foil winding UL RoHS supplier PZ-ETD34H-35M Horizontal High power, high current,Inverter power supply transformer Output copper foil winding UL RoHS supplier PZ-ETD34H-35M Horizontal High power, high current,Inverter power supply transformer Output copper foil winding UL RoHS supplier

Large Image :  PZ-ETD34H-35M Horizontal High power, high current,Inverter power supply transformer Output copper foil winding UL RoHS

Product Details:

Place of Origin: Dongguan, China
Brand Name: P&Z
Certification: ISO9001:2015
Model Number: PZ-ETD34HC-731352M

Payment & Shipping Terms:

Minimum Order Quantity: 5000PCS
Price: To be confirmed
Packaging Details: Blister+Carton
Delivery Time: around 3-4 Weeks
Payment Terms: T/T
Supply Ability: 1KK
Contact Now
Detailed Product Description

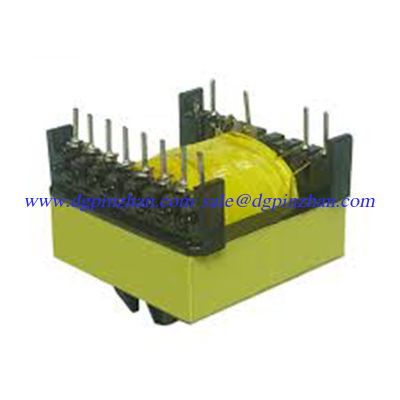

Material: Ferrite Core Dimension: 38*38*29
Installation Method: Horizontal Through Hole



PZ-ETD34 Horizontal LLCR Resonant Converter

PZ-ETD34H-35M Horizontal High power, high current,Inverter power supply transformer Output copper foil winding UL RoHSPZ-ETD34H-35M Horizontal High power, high current,Inverter power supply transformer Output copper foil winding UL RoHSPZ-ETD34H-35M Horizontal High power, high current,Inverter power supply transformer Output copper foil winding UL RoHS




Dimensions:

PZ-ETD34H-35M Horizontal High power, high current,Inverter power supply transformer Output copper foil winding UL RoHS




Characteristics

  • Transformer for high efficiency power supply
  • Input voltage 360-400 V (DC)
  • Switching frequency 70-120 kHz
  • Output power 150-250 W
  • Litz wire for low eddy current losses
  • Defined leakage inductance for use without additional resonant inductor

Applications

  • Powersupply for PC, Notebook etc., LED lighting, other powersupplies
  • High efficient resonant converters





Properties Test conditions Value Unit Tolerance
Inductance:12-14 1KHZ/0.3V 3.5 mH Min
Turns ratio: N2:N1 0.25:1 　 ±1%
Turns ratio: N3:N1 0.187:1 　 ±1%
Hi-pot:Pri-Sec AC3000V/3mA/3S V/(AC) Pass
Hi-pot:Pri/Sec-Core AC1500V/3mA/3S V/(AC) Pass




Download the attached PDF file to view, PDF data can be customized according to customer requirements
