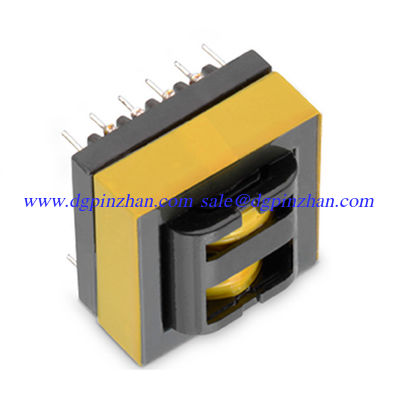

PZ-ETD34H-122K Horizontal 180W High power, high current, stranded wire transformer Competitive price compliant UL RoHS
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Ferrite Core | Dimension: | 38*38*29 |
|---|---|---|---|
| Installation Method: | Horizontal Through Hole |
PZ-ETD34 Horizontal LLCR Resonant Converter
Dimensions:
Characteristics
- Transformer for high efficiency power supply
- Input voltage 360-400 V (DC)
- Switching frequency 70-120 kHz
- Output power 150-250 W
- Litz wire for low eddy current losses
- Defined leakage inductance for use without additional resonant inductor
Applications
- Powersupply for PC, Notebook etc., LED lighting, other powersupplies
- High efficient resonant converters
| Properties | Test conditions | Value | Unit | Tolerance | ||
| Inductance:5-6 | 1KHZ/0.3V | 1200 | uH | ±10% | ||
| Leakage :5-6 | 1KHZ/0.3V other short | 180 | uH | Max | ||
| Turns ratio: | N2:N1 | 0.18:1 | ±1% | |||
| Turns ratio: | N3:N1 | 0.1:1 | ±1% | |||
| Turns ratio: | N2:N2:N3:N3 | 1:1:1:1 | ±1% | |||
| Hi-pot:Pri-Sec | AC3700V/5mA/3S | V/(AC) | Pass | |||
| Hi-pot:Pri/Sec-Core | AC1500V/5mA/3S | V/(AC) | Pass | |||
Download the attached PDF file to view, PDF data can be customized according to customer requirements
