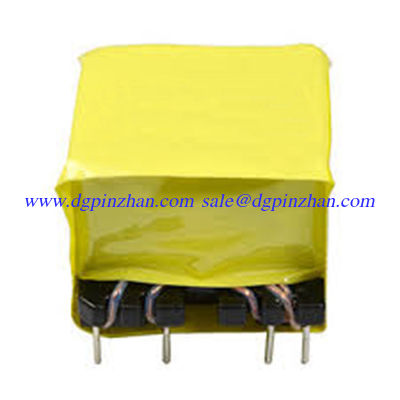

PZ-PQ3230V-202K MID-FWDTI Offline Forward Transformers for TexTexas Instruments Alternative Wurth 750315800
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Mn-Zn Ferrite | Dimension: | 37.35*35.6*34.3 |
|---|---|---|---|
| Installation Method: | Vertical Through Hole |
PZ-PQ3230V-202K MID-FWDTI Offline Forward Transformers for Texas Instruments
Dimensions:
| Properties | Test conditions | Value | Unit | Tolerance | ||
| Inductance:3-2 | 10KHZ/0.1V | 2 | mH | ±10% | ||
| DC-resistance:3-2 | @25 °C | 460 | mΩ | Max | ||
| DC-resistance:8-11 | @25 °C | 70 | mΩ | Max | ||
| Turns: | N1:N2 | 4.6:1 | Ts | ±1% | ||
| Hi-pot:Pri-Sec | 3750VAC/3mA/3S50HZ | V/(AC) | Pass | |||
| Hi-pot:Pri/Ses To Core | 1000VAC/3mA/3S/50HZ | V/(AC) | Pass | |||
Characteristics
- Compact design
- 200W power output
- THT mount
- Reinforced insulation
- Lead-free and RoHS compliant
Applications
- Offline switching power
- Power electronics
- Electronic ballasts
- Audio amplifiers
