PZ-EF16H-152K MID-OLTI Offline Flyback Transformers for Texas Instruments Alternative Wurth7508110325

PZ-EF16H-152K MID-OLTI Offline Flyback Transformers for Texas Instruments Alternative Wurth7508110325

China PZ-EF16H-152K MID-OLTI Offline Flyback Transformers for Texas Instruments Alternative Wurth7508110325 supplier
PZ-EF16H-152K MID-OLTI Offline Flyback Transformers for Texas Instruments Alternative Wurth7508110325 supplier PZ-EF16H-152K MID-OLTI Offline Flyback Transformers for Texas Instruments Alternative Wurth7508110325 supplier PZ-EF16H-152K MID-OLTI Offline Flyback Transformers for Texas Instruments Alternative Wurth7508110325 supplier PZ-EF16H-152K MID-OLTI Offline Flyback Transformers for Texas Instruments Alternative Wurth7508110325 supplier PZ-EF16H-152K MID-OLTI Offline Flyback Transformers for Texas Instruments Alternative Wurth7508110325 supplier

Large Image :  PZ-EF16H-152K MID-OLTI Offline Flyback Transformers for Texas Instruments Alternative Wurth7508110325

Product Details:

Place of Origin: Dongguan, China
Brand Name: P&Z
Certification: ISO9001:2015
Model Number: PZ-EF16H-152K

Payment & Shipping Terms:

Minimum Order Quantity: 5000PCS
Price: To be confirmed
Packaging Details: Blister+Carton
Delivery Time: around 3-4 Weeks
Payment Terms: T/T
Supply Ability: 1KK
Detailed Product Description
Material: Ferrite Core Dimension: 20.5*25*16
Installation Method: Horizontal Through Hole

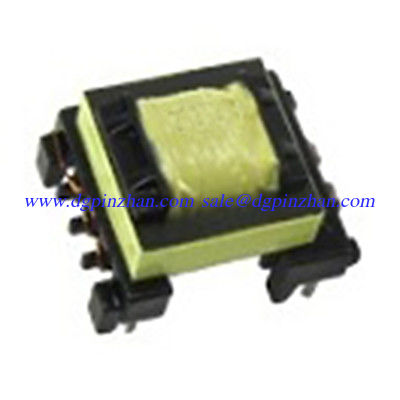

PZ-EF16H-152K MID-OLTI Offline Flyback Transformers for Texas Instruments Alternative Wurth7508110325

Dimensions:

PZ-EF16H-152K MID-OLTI Offline Flyback Transformers for Texas Instruments Alternative Wurth7508110325



Properties Test conditions Value
Inductance 1-3 10KHZ/0.1V 1.5 mH ±10%
2.Leakage inductance 1-3 100KHZ/0.1V SHORT OTHER Pin. 13 uH Max
DC Resistance 1-3 @20 °C 1.7 Ω Max
DC Resistance 5-4 @20 °C 190 Max
DC Resistance 7-8 @20 °C 45 Max
Hi-Pot PRI TO SEC 4000VAC/5mA/3S/50HZ   VAC Pass
Hi-Pot PRI SEC TO CORE 2000VAC/5mA/3S/50HZ   VAC Pass
Turn ratio 3-2:2-1 1:1±1%
Turn ratio 3-1:5-4 5.38:1±1%
Turn ratio 3-1:7-8 7.82:1±1%

Characteristics

  • Universal, US or European offline input voltage
  • Small size
  • Low leakage inductance
  • Multiple-output options

Applications

  • Industrial controls
  • USB chargers
  • Metering
  • Process controls
  • Factory automation
  • Security systems
  • Garage door opener auxiliary supplies

Download the attached PDF file to view, PDF data can be customized according to customer requirements
