8mH 0.7A MiZn Common mode choke,PZ-TBL1264V-802M AlternativeWurth Electronics 744821110 Power line in- and output filt

China 8mH 0.7A MiZn Common mode choke,PZ-TBL1264V-802M AlternativeWurth Electronics 744821110 Power line in- and output filt supplier
8mH 0.7A MiZn Common mode choke,PZ-TBL1264V-802M AlternativeWurth Electronics 744821110 Power line in- and output filt supplier 8mH 0.7A MiZn Common mode choke,PZ-TBL1264V-802M AlternativeWurth Electronics 744821110 Power line in- and output filt supplier 8mH 0.7A MiZn Common mode choke,PZ-TBL1264V-802M AlternativeWurth Electronics 744821110 Power line in- and output filt supplier 8mH 0.7A MiZn Common mode choke,PZ-TBL1264V-802M AlternativeWurth Electronics 744821110 Power line in- and output filt supplier 8mH 0.7A MiZn Common mode choke,PZ-TBL1264V-802M AlternativeWurth Electronics 744821110 Power line in- and output filt supplier

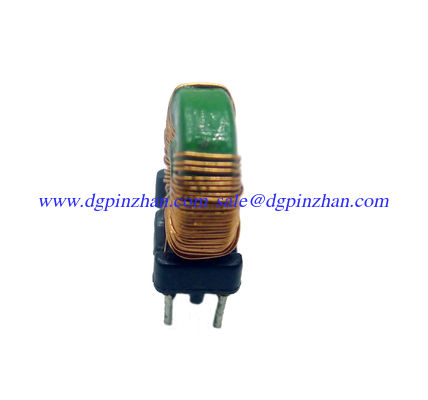

Large Image :  8mH 0.7A MiZn Common mode choke,PZ-TBL1264V-802M AlternativeWurth Electronics 744821110 Power line in- and output filt

Product Details:

Place of Origin: China
Brand Name: P&Z Electronics
Certification: ISO9001:2015
Model Number: PZ-TBL1264V-802M

Payment & Shipping Terms:

Minimum Order Quantity: 5000PCS
Price: Ask us
Packaging Details: Blister+Carton or Pearl cotton + carton
Delivery Time: 20 ～30days
Payment Terms: T/T
Supply Ability: 100Ｋ/M
Contact Now
Detailed Product Description
Material: MiZn1264 Dimension:: 16＊18＊8.5
L: 8mH Min Current: 0.7Ａ Max
ＤＣＲ: 350mΩ Max Test Frequency: 1KHZ/0.25V

8mH 0.7A MiZn Common mode choke,PZ-TBL1264V-802M AlternativeWurth Electronics 744821110 Power line in- and output filt8mH 0.7A MiZn Common mode choke,PZ-TBL1264V-802M AlternativeWurth Electronics 744821110 Power line in- and output filt8mH 0.7A MiZn Common mode choke,PZ-TBL1264V-802M AlternativeWurth Electronics 744821110 Power line in- and output filt

Properties Test conditions Value Unit Tolerance
Inductance 10KHZ/0.25V 8 mH Min
DC Resistance @20 °C 350 mΩ Max
Rated Current @ 70 °C 0.7 A Max
Rated Voltage(UR) 50 Hz 250 V/(AC) Max
Insulation Test Voltage(UT) 50 Hz/ 5 mA/ 3 sec. 1500 V/(AC) Pass

Characteristics

  • Core material: Mickel-Zinc Ferrite
  • Broadband filterring due to low capacitance winding technique
  • High suppression of asymmetrical interferences also at low frequency range
  • Very compact design
  • Highest possible rated current by small size
  • Operating temperature: –40 ºC to +125 ºC

Applications

  • Power electronics
  • Power line in- and output filter
  • Filterring of devices without any ground connection
  • Suppression of radio interferences in motors
  • Suppression of common mode noise

♦Acceptable customers design custom
