PDSL-0807D-Series 22~10000uH Nickel-zinc DIP DR TYPE inductor Choke CoilLow cost, competitive price, high current Nicke

China PDSL-0807D-Series 22~10000uH Nickel-zinc DIP DR TYPE inductor Choke CoilLow cost, competitive price, high current Nicke supplier
PDSL-0807D-Series 22~10000uH Nickel-zinc DIP DR TYPE inductor Choke CoilLow cost, competitive price, high current Nicke supplier PDSL-0807D-Series 22~10000uH Nickel-zinc DIP DR TYPE inductor Choke CoilLow cost, competitive price, high current Nicke supplier PDSL-0807D-Series 22~10000uH Nickel-zinc DIP DR TYPE inductor Choke CoilLow cost, competitive price, high current Nicke supplier

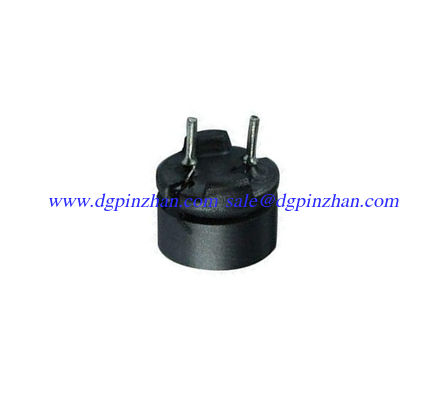

Large Image :  PDSL-0807D-Series 22~10000uH Nickel-zinc DIP DR TYPE inductor Choke CoilLow cost, competitive price, high current Nicke

Product Details:

Place of Origin: Dongguan, China
Brand Name: P&Z
Certification: ISO9001:2015
Model Number: PDSL-0807D-Series

Payment & Shipping Terms:

Minimum Order Quantity: 5000PCS
Price: To be confirmed
Packaging Details: Blister + Carton or bulk
Delivery Time: around 3-4 Weeks
Payment Terms: T / T in advance
Supply Ability: 1KK
Contact Now
Detailed Product Description

PDSL-0807D-Series 22~10000uH Nickel-zinc DIP DR TYPE inductor Choke CoilLow cost, competitive price, high current Nicke

PDSL-0807D-Series DIP DR TYPE Shielded inductor

Dinductance Range: 22μH~10000μH

Dimensions:8.3 * 7.5 (mm)

       P&Z Inductance Test
Frequency		 Tolerance DCR Rated Current
   Part Number (μH) (％) (Ω) Max (A) Max
PDSL0807D - 220M□  22 1KHz/0.25V ± 20% 0.080 1.600
PDSL0807D - 270M□  27 1KHz/0.25V ± 20% 0.100 1.400
PDSL0807D - 330M□  33 1KHz/0.25V ± 20% 0.140 1.300
PDSL0807D - 390M□  39 1KHz/0.25V ± 20% 0.150 1.200
PDSL0807D - 470M□  47 1KHz/0.25V ± 20% 0.170 1.100
PDSL0807D - 560M□  56 1KHz/0.25V ± 20% 0.190 0.990
PDSL0807D - 680M□  68 1KHz/0.25V ± 20% 0.210 0.890
PDSL0807D - 820M□  82 1KHz/0.25V ± 20% 0.270 0.810
PDSL0807D - 101M□  100 1KHz/0.25V ± 20% 0.320 0.740
PDSL0807D - 121M□  120 1KHz/0.25V ± 20% 0.360 0.670
PDSL0807D - 151M□  150 1KHz/0.25V ± 20% 0.510 0.600
PDSL0807D - 181M□  180 1KHz/0.25V ± 20% 0.570 0.550
PDSL0807D - 221M□  220 1KHz/0.25V ± 20% 0.760 0.500
PDSL0807D - 271M□  270 1KHz/0.25V ± 20% 0.860 0.450
PDSL0807D - 331M□  330 1KHz/0.25V ± 20% 0.970 0.410
PDSL0807D - 391M□  390 1KHz/0.25V ± 20% 1.280 0.370
PDSL0807D - 471M□  470 1KHz/0.25V ± 20% 1.440 0.340
PDSL0807D - 561M□  560 1KHz/0.25V ± 20% 1.610 0.310
PDSL0807D - 681M□  680 1KHz/0.25V ± 20% 2.070 0.280
PDSL0807D - 821M□  820 1KHz/0.25V ± 20% 2.330 0.260
PDSL0807D - 102M□  1000 1KHz/0.25V ± 20% 2.720 0.230
PDSL0807D - 122M□  1200 1KHz/0.25V ± 20% 3.980 0.210
PDSL0807D - 152M□  1500 1KHz/0.25V ± 20% 4.500 0.190
PDSL0807D - 182M□  1800 1KHz/0.25V ± 20% 6.810 0.170
PDSL0807D - 222M□  2200 1KHz/0.25V ± 20% 7.560 0.160
PDSL0807D - 272M□  2700 1KHz/0.25V ± 20% 8.540 0.140
PDSL0807D - 332M□  3300 1KHz/0.25V ± 20% 9.740 0.130
PDSL0807D - 392M□  3900 1KHz/0.25V ± 20% 12.900 0.120
PDSL0807D - 472M□  4700 1KHz/0.25V ± 20% 14.700 0.110
PDSL0807D - 562M□  5600 1KHz/0.25V ± 20% 20.400 0.099
PDSL0807D - 682M□  6800 1KHz/0.25V ± 20% 23.000 0.089
PDSL0807D - 822M□  8200 1KHz/0.25V ± 20% 30.600 0.081
PDSL0807D - 103M□  10000 1KHz/0.25V ± 20% 35.000 0.074

 ♦Acceptable customers design custom

You may also interested in other products: More Products

Web site:http://www.dgpinzhan.com              E-mail:sales@dgpinzhan.com             Skype:justin029

PDSL-0807D-Series 22~10000uH Nickel-zinc DIP DR TYPE inductor Choke CoilLow cost, competitive price, high current Nicke

PDSL0807D Serise.pdf
