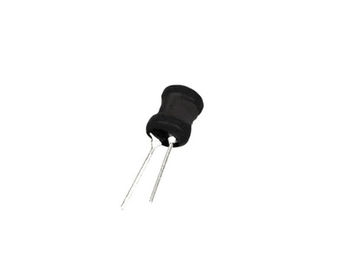

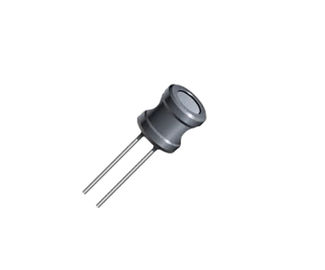

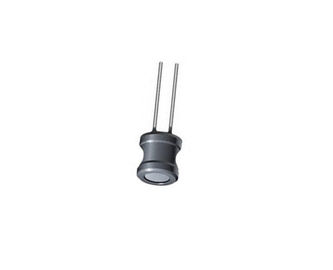

PDL0608 Series DIP DR TYPE inductor
DInductance Range: 2.2μH~1500μH
Dimensions: 8 * 10 (mm)
Applications: choke, filter inductors, inductor, EMI differential mode inductors, boost inductor, inductance oscillation, RF radio frequency.
Part Number |
Inductance L(μH) |
Test Frequency |
Percent Tolerance |
Resistance RDC(Ω)Max. |
Rated DC Current |
|
IDC1(A) |
IDC2(A) |
|||||
PDL-0608-2R2□ |
2.2 |
M |
10KHZ/0.25V |
16m |
7 |
6 |
PDL-0608-3R3□ |
3.3 |
M |
10KHZ/0.25V |
19m |
5.5 |
5 |
PDL-0608-4R7□ |
4.7 |
M |
10KHZ/0.25V |
23m |
4 |
4.2 |
PDL-0608-100□ |
10 |
K,M |
10KHZ/0.25V |
0.13 |
2.4 |
3 |
PDL-0608-150□ |
15 |
K,M |
10KHZ/0.25V |
0,19 |
1.3 |
2.7 |
PDL-0608-220□ |
22 |
K,M |
10KHZ/0.25V |
0.3 |
1.15 |
2 |
PDL-0608-270□ |
27 |
K,M |
10KHZ/0.25V |
0.4 |
1.1 |
1.8 |
PDL-0608-330□ |
33 |
K,M |
10KHZ/0.25V |
0.55 |
1.05 |
1.75 |
PDL-0608-390□ |
39 |
K,M |
10KHZ/0.25V |
0.59 |
1 |
1.5 |
PDL-0608-470□ |
47 |
K,M |
10KHZ/0.25V |
0.61 |
0.95 |
1.2 |
PDL-0608-500□ |
50 |
K,M |
10KHZ/0.25V |
0.62 |
0.93 |
1.1 |
PDL-0608-680□ |
68 |
K,M |
10KHZ/0.25V |
0.65 |
0.83 |
1 |
PDL-0608-101□ |
100 |
K,M |
10KHZ/0.25V |
0.74 |
0.7 |
0.95 |
PDL-0608-221□ |
220 |
K,M |
10KHZ/0.25V |
0.89 |
0.49 |
0.6 |
PDL-0608-391□ |
390 |
K,M |
10KHZ/0.25V |
0.32 |
0.37 |
0.5 |
PDL-0608-471□ |
470 |
K,M |
10KHZ/0.25V |
1.45 |
0.32 |
0.4 |
PDL-0608-561□ |
560 |
K,M |
10KHZ/0.25V |
2 |
0.29 |
0.4 |
PDL-0608-821□ |
820 |
K,M |
10KHZ/0.25V |
3 |
0.22 |
0.35 |
PDL-0608-152□ |
1500 |
J,K |
10KHZ/0.25V |
4.5 |
0.18 |
0.27 |
♦Acceptable customers design custom
