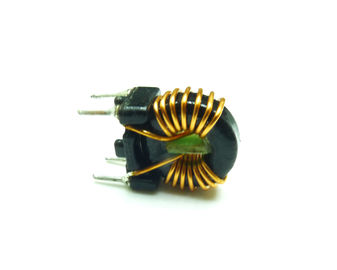

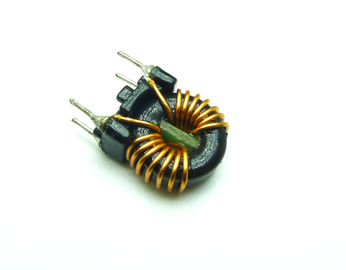

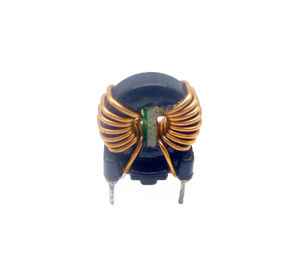

100uH NiZn Common mode choke,PZ-TBL1264V-101M AlternativeWurth Electronics 744841247 Power line in- and output filte
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | ＮiZn1264 | Dimension:: | 16＊17.5＊7.5 |
|---|---|---|---|
| L: | 100uH | Current: | 1.5Ａ |
| ＤＣＲ: | 80mΩ |
| Properties | Test conditions | Value | Unit | Tolerance | ||
| Inductance | 10KHZ/0.25V | 100 | uH | Min | ||
| DC Resistance | @20 °C | 80 | mΩ | Max | ||
| Rated Current | @70 °C | 1.5 | A | Max | ||
| Rated Voltage(UR) | 50 Hz | 250 | V/(AC) | Max | ||
| Insulation Test Voltage(UT) | 50 Hz/ 5 mA/ 3 sec. | 1500 | V/(AC) | Pass | ||
Characteristics
- Core material: Nickel-Zinc Ferrite
- High suppression rates of asymmetrical interferences at high and middle frequencies
- High interference stability against RF interference and burst signals
- Compact design
- Noise suppression up to 300 MHz
- Operating temperature: –40 ºC to +125 ºC
- Flammability corresponding to UL 94 V-0
- Climatic category: 40/125/21
- Certified according to IEC 60938-2
Applications
- Power electronics
- Power line in- and output filter
- Optimized for burst signals
♦Acceptable customers design custom
