RC Type High Current Chokes Inductor PZ-RL0415 Series 4.7uH~10uH

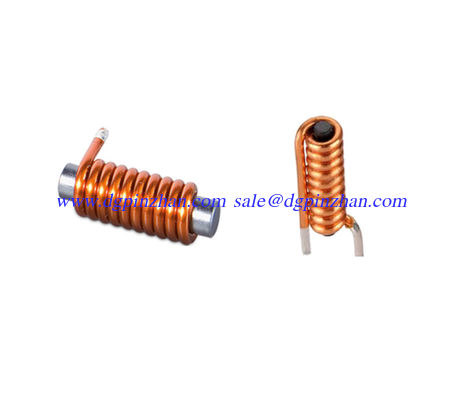

Large Image : RC Type High Current Chokes Inductor PZ-RL0415 Series 4.7uH~10uH

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	P&Z
Certification:	ISO9001:2015
Model Number:	PZ-RL0415 Series

Payment & Shipping Terms:

Minimum Order Quantity:	5000PCS
Price:	To be confirmed
Packaging Details:	EPE + Carton or plastic + Carton
Delivery Time:	around 3-4 Weeks
Payment Terms:	T / T in advance
Supply Ability:	300K

Contact Now

Detailed Product Description

RC Type High Current Chokes

PZRL0415 Series RC Type High Current Chokes

Dimensions:(mm):

Features:

.High saturation current.

.General purpose inductors

.Low cost design,Tin plated leads.

.Varnish coated or UL tube.

Applications:

.Power supplies.

.Power amplifiers.

.Noise filter for Switching regulators.

.SCR and Triac circuits.

★Design to customer requirement.

Electrical Characteristics:

Part No.	L(uH) 1KHZ/0.25V	DCR(Ω)Max	Rated Current (A) Max	SRF (MHZ)Min	Wire Size(mm)	Turns (Ts)REF
Part No.	L(uH) 1KHZ/0.25V	DCR(Ω)Max	Rated Current (A) Max	SRF (MHZ)Min	Wire Size(mm)	Turns (Ts)REF
PZRL0415-4R7K	4.7	0.24	2.26	90	0.60	17.5
PZRL0415-5R6K	5.6	0.03	1.90	80	0.55	18.5
PZRL0415-6R8K	6.8	0.04	1.57	80	0.50	18.5
PZRL0415-8R2K	8.2	0.06	1.27	80	0.45	21.5
PZRL0415-100K	10	0.08	1.00	70	0.40	24.5

Characteristics:

Rated Current : It is either the inductance is 20% lower.

is than its initial value in DC. saturation characteristics

or temperature rise becomes △T=25℃(Ta=20)

Whichever lower.

.Operating temperature : -20℃ to 80℃.

Test equipment and test steup:

L: LCR meter, @1kHz/0.25V, 25℃.

DCR: Milli-ohm meter.

.Electrical specifications at 25℃.

♦Acceptable customers design cust

Web site:http://www.dgpinzhan.com E-mail:sales@dgpinzhan.com Skype:justin029
