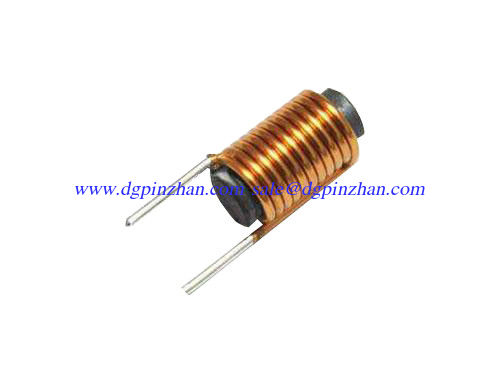

PZ-RL0520V-4R7M 4.7uH RC Type Low resistance, High CurrentRod Core Vertical Inducto UL heat shrink tubing, UL RoHS
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Installation Method: | Horizontal Level | Material: | Nickel Core Ferrite |
|---|---|---|---|
| Inductance: | 10uH | DCR: | 30mΩ Max |
| Rated Current: | 1.5A Max |
RC Type High Current Chokes
Features:
.High saturation current.
.General purpose inductors
.Low cost design,Tin plated leads.
.Varnish coated or UL tube.
Applications:
.Power supplies.
.Power amplifiers.
.Noise filter for Switching regulators.
.SCR and Triac circuits.
★Design to customer requirement.
Electrical Characteristics:
| Part No. | L(uH) 1KHZ/1V | DCR(mΩ)Max | Rated Current (A) Max | Turns (Ts)REF |
| PZRL0520V-4R7M | 4.7 | 60 | 5 | 16 |
Characteristics:
Rated Current : It is either the inductance is 20% lower.
is than its initial value in DC. saturation characteristics
or temperature rise becomes △T=25℃(Ta=20)
Whichever lower.
.Operating temperature : -20℃ to 80℃.
Test equipment and test steup:
L: LCR meter, @1kHz/0.25V, 25℃.
DCR: Milli-ohm meter.
.Electrical specifications at 25℃.
