PSPQ2618 Series Flat wire High Current inductors For DC / DC converter PV inverter

Large Image : PSPQ2618 Series Flat wire High Current inductors For DC / DC converter PV inverter

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	P&Z
Certification:	ISO9001:2015
Model Number:	PSPQ2618 Series

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Price:	To be confirmed
Packaging Details:	Blister + Carton
Delivery Time:	around 3-4 Weeks
Payment Terms:	T / T in advance
Supply Ability:	100K

Contact Now

Detailed Product Description

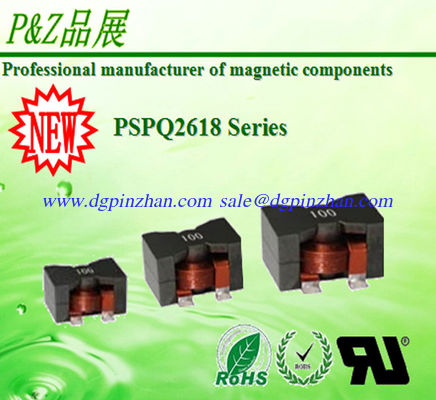

PSPQ2618 Series Flat wire High Current inductors For DC / DC converter PV inverter

PSPQ2618 Series Flat wire High Current inductors For DC / DC converter PV inverte

Dimensions (mm):27.5 x 21.5 x 18.0

Inductance Range(uH):3.3 ~ 33.0

DCR Range(mΩ):2.9 ~2.9

Heat RatingCurrent DC Idc (A):28.0 ~ 28.0

Saturation Current DC Isat (A):8.7~ 92.0

Feature:

1. The magnetic shield structure, the magnetic circuit is closed, anti-electromagnetic interference (EMI), called ultra-low beep, high-density mounting.

2. low magnetic loss, DC resistance, at a high frequency and high temperature environment remains favorable current and saturation current.

3. tripod joints, welding firm; antioxidant, easy on the tin;

4. The use of rapid stripping process, PIN foot smooth surface, no deformation, easy on the tin

Application:

Used in industrial motherboards, notebook computers, automotive equipment, power distribution systems, DC / DC converters, LED driver power supply, communications equipment, medical equipment, military electronics, aerospace technology.

Electrical Specifications:

Part No	Test frequency	Inductance L(uH)±30%	DCR(mΩ)Max	Heat Rated Current(A)Max	Saturation Current(A)Max

PSPQ2618-3R3M	100KHZ/0.25V	3.3	2.9	28.0	92.0
PSPQ2618-4R7M	100KHZ/0.25V	4.7	2.9	28.0	61.0
PSPQ2618-6R8M	100KHZ/0.25V	6.8	2.9	28.0	45.0
PSPQ2618-100M	100KHZ/0.25V	10	2.9	28.0	31.0
PSPQ2618-150M	100KHZ/0.25V	15	2.9	28.0	21.2
PSPQ2618-220M	100KHZ/0.25V	22	2.9	28.0	14.0
PSPQ2618-330M	100KHZ/0.25V	33	2.9	28.0	8.7

You may also interested in other products:More Products

Web site:http://www.dgpinzhan.com E-mail:sales@dgpinzhan.com Skype:justin029

PSPQ2618 Series Flat wire High Current inductors For DC / DC converter PV inverter

PSPQ2618 Series.pdf
