PSM1360 Series 8.2~150uH Iron alloy Molding SMD High Current Inductors Chokes Square

PSM1360 Series 8.2~150uH Iron alloy Molding SMD High Current Inductors Chokes Square

China PSM1360 Series 8.2~150uH Iron alloy Molding SMD High Current Inductors Chokes Square supplier
PSM1360 Series 8.2~150uH Iron alloy Molding SMD High Current Inductors Chokes Square supplier PSM1360 Series 8.2~150uH Iron alloy Molding SMD High Current Inductors Chokes Square supplier PSM1360 Series 8.2~150uH Iron alloy Molding SMD High Current Inductors Chokes Square supplier PSM1360 Series 8.2~150uH Iron alloy Molding SMD High Current Inductors Chokes Square supplier

Large Image :  PSM1360 Series 8.2~150uH Iron alloy Molding SMD High Current Inductors Chokes Square

Product Details:

Place of Origin: Dongguan, China
Brand Name: P&Z
Certification: ISO9001:2015
Model Number: PSM1360 Series

Payment & Shipping Terms:

Minimum Order Quantity: 1Reel
Price: To be confirmed
Packaging Details: Reel+carton
Delivery Time: around 3-4 Weeks
Payment Terms: T / T in advance
Supply Ability: 1KK
Detailed Product Description
Shape: Square Size: 14*13*6.0
Material: Iron Alloy Packing Quantity: 500PCS/Reel

PSM1360 Series 8.2~150uH Iron alloy Molding SMD High Current Inductors Chokes Square

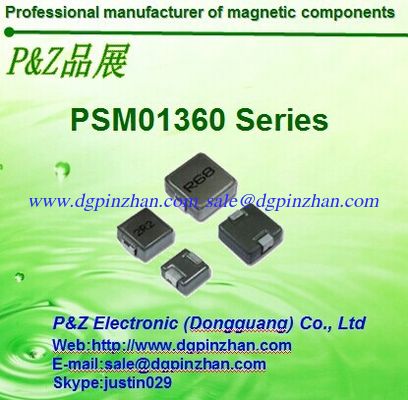

PSM1360 Series SMD High Current Inductors

Dimensions (mm):10.3 x 11.5 x 5.0

Inductance Range(uH):5.2 ~ 100uH

DCR Range(mΩ):16~ 400

Heat RatingCurrent DC Idc (A):2~ 5.5

Saturation Current DC Isat (A):3 ~ 10.0

Features:
High performance (Isat) realized by metal dust core.
Low profile:Thickness max.6.0 mm
Low loss realized with low DCR Capable of corresponding high frequency (1MHz)
Design to customer requirement

Application:
DC/DC converter for CPU in Notebook PC
Thin type on-board power supply module for exchangerVRM for server.

P&Z Part Number

L0 @ (0A)

Inductance

( μH ) ±20%

DCR(mΩ)

Heat Rating Current

DC Amps. Idc ( A )

Saturation Current

DC Amps. Isat ( A )

Typical

Maximum

Typical

Typical

PSM1360-8R2M

8.2

13.6

16

11

13.5

PSM1360-100M

10

18

20.7

10

12.5

PSM1360-120M

12

20

23

7

10

PSM1360-150M

15

25

29

6

9

PSM1360-180M

18

30

35

5

8

PSM1360-220M

22

34

39.5

5

7.5

PSM1360-270M

27

49

56

4

6.5

PSM1360-330M

33

65

75

4

6

PSM1360-470M

47

80

90

3.5

5.5

PSM1360-680M

68

120

140

3

4.5

PSM1360-101M

100

180

200

2.5

3.5

PSM1360-121M

120

210

235

2.3

3.2

PSM1360-151M

150

300

350

2

2.7



Packaging Information:
