PSM0312 Series 0.68~3.3uH SMD Molding High Current Inductors Chokes DC/DC-converter for high current power supplies

China PSM0312 Series 0.68~3.3uH SMD Molding High Current Inductors Chokes DC/DC-converter for high current power supplies supplier
PSM0312 Series 0.68~3.3uH SMD Molding High Current Inductors Chokes DC/DC-converter for high current power supplies supplier PSM0312 Series 0.68~3.3uH SMD Molding High Current Inductors Chokes DC/DC-converter for high current power supplies supplier PSM0312 Series 0.68~3.3uH SMD Molding High Current Inductors Chokes DC/DC-converter for high current power supplies supplier PSM0312 Series 0.68~3.3uH SMD Molding High Current Inductors Chokes DC/DC-converter for high current power supplies supplier PSM0312 Series 0.68~3.3uH SMD Molding High Current Inductors Chokes DC/DC-converter for high current power supplies supplier

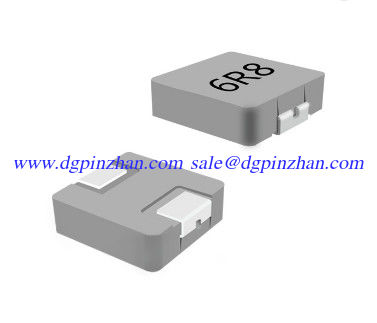

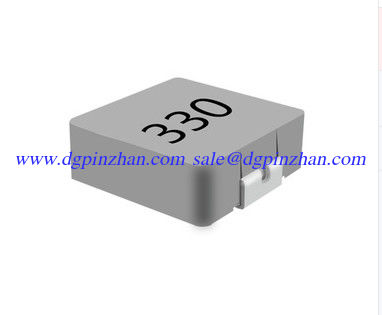

Large Image :  PSM0312 Series 0.68~3.3uH SMD Molding High Current Inductors Chokes DC/DC-converter for high current power supplies

Product Details:

Place of Origin: Dongguan, China
Brand Name: P&Z
Certification: ISO9001:2015
Model Number: PSM0312 Series

Payment & Shipping Terms:

Minimum Order Quantity: 1Reel
Price: To be confirmed
Packaging Details: Reel+Carton
Delivery Time: around 3-4 Weeks
Payment Terms: T / T in advance
Supply Ability: 1KK
Contact Now
Detailed Product Description

PSM0312 Series 0.68~3.3uH SMD Molding High Current Inductors Chokes DC/DC-converter for high current power suppliesPSM0312 Series 0.68~3.3uH SMD Molding High Current Inductors Chokes DC/DC-converter for high current power suppliesPSM0312 Series 0.68~3.3uH SMD Molding High Current Inductors Chokes DC/DC-converter for high current power suppliesPSM0312 Series 0.68~3.3uH SMD Molding High Current Inductors Chokes DC/DC-converter for high current power supplies

PSM0312 Series SMD High Current Inductors



Features:

  • Magnetic iron alloy allows high rated currents
  • Compact design
  • Magnetically shielded
  • High current capability and handles high transient current spikes
  • Low acoustic noise and low leakage flux noise
  • Operating temperature: –40 °C to 125 °C

Applications

  • DC/DC-converter for high current power supplies
  • DC/DC-converter for Field Programmable Gate Array (FPGA)
  • POL-converters
  • Portable power like PDA, digital camera
  • Mainboards/graphic cards
  • Battery powered devices
  • Wireless communication devices
  • Power supplies for smart- phones, tablet PCs and other mobile devices

Electrical Properties:

Part Code Inductance Test conditions DC-Resistance Heat Rating Currentt Saturation current
PSM0312-R68N 0.68uH±30% 100KHZ/1V 40mΩ Max 3.5A Max 5.0A Max
PSM0312-1R0N 1.0uH±30% 100KHZ/1V 60mΩ Max 3.0A Max 4.5A Max
PSM0312-1R5N 1.5uH±30% 100KHZ/1V 85mΩ Max 2.5A Max 3.8A Max
PSM0312-2R2N 2.2uH±30% 100KHZ/1V 125mΩ Max 1.8A Max 3.1A Max
PSM0312-3R3N 3.3uH±30% 100KHZ/1V 160mΩ Max 1.5A Max 2.6A Max
