PSM1350B Series 0.36~6.8uH Iron alloy Molding SMD High Current Inductors Chokes Square

China PSM1350B Series 0.36~6.8uH Iron alloy Molding SMD High Current Inductors Chokes Square supplier
PSM1350B Series 0.36~6.8uH Iron alloy Molding SMD High Current Inductors Chokes Square supplier PSM1350B Series 0.36~6.8uH Iron alloy Molding SMD High Current Inductors Chokes Square supplier PSM1350B Series 0.36~6.8uH Iron alloy Molding SMD High Current Inductors Chokes Square supplier PSM1350B Series 0.36~6.8uH Iron alloy Molding SMD High Current Inductors Chokes Square supplier

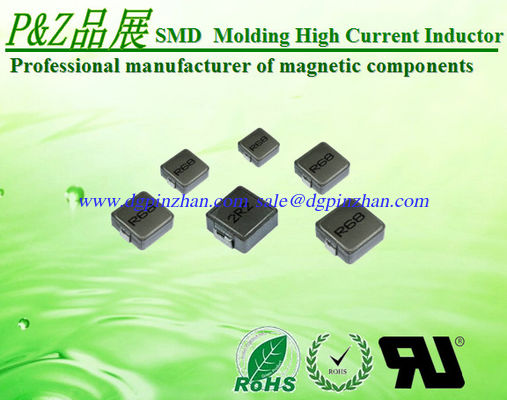

Large Image :  PSM1350B Series 0.36~6.8uH Iron alloy Molding SMD High Current Inductors Chokes Square

Product Details:

Place of Origin: Dongguan, China
Brand Name: P&Z
Certification: ISO9001:2015
Model Number: PSM1350B Series

Payment & Shipping Terms:

Minimum Order Quantity: 1Reel
Price: To be confirmed
Packaging Details: Reel+carton
Delivery Time: around 3-4 Weeks
Payment Terms: T / T in advance
Supply Ability: 1KK
Contact Now
Detailed Product Description
Shape: Square Size: 14*13*5.0
Material: Iron Alloy Packing Quantity: 500PCS/Reel

PSM1350B Series 0.36~6.8uH Iron alloy Molding SMD High Current Inductors Chokes Square

PSM1350B Series SMD High Current Inductors

Dimensions (mm):12.8 x 13.8 x 5.0

Inductance Range(uH):0.36 ~ 6.8

DCR Range(mΩ):0.77 ~ 18.5

Heat RatingCurrent DC Idc (A):11.0 ~ 41.0

Saturation Current DC Isat (A):21.0 ~ 75.0

Features:
High performance (Isat) realized by metal dust core.
Low profile:Thickness max.5.0 mm
Low loss realized with low DCR Capable of corresponding high frequency (1MHz)
Design to customer requirement
Application:
DC/DC converter for CPU in Notebook PC
Thin type on-board power supply module for exchangerVRM for server.

P&Z Part Number

L0 @ (0A)

Inductance

( μH ) ±20%

DCR(mΩ)

Heat Rating Current

DC Amps. Idc ( A )

Saturation Current

DC Amps. Isat ( A )

Typical

Maximum

Typical

Typical

PSM1350B-R36M

0.36

0.77

1.1

41

75

PSM1350B-R47M

0.47

1.1

1.3

38

65

PSM1350B-R50M

0.5

1.2

1.5

36

55

PSM1350B-R56M

0.56

1.2

1.5

36

55

PSM1350B-R62M

0.62

1.5

1.7

34

54

PSM1350B-R68M

0.68

1.5

1.7

34

54

PSM1350B-R82M

0.82

1.8

2.1

31

53

PSM1350B-1R0M

1.0

2.1

2.5

29

50

PSM1350B-1R5M

1.5

3.4

4.1

23

48

PSM1350B-2R2M

2.2

4.6

5.5

20

32

PSM1350B-3R3M

3.3

7.7

9.2

15

32

PSM1350B-4R7M

4.7

12.8

15

12

27

PSM1350B-6R8M

6.8

15.4

18.5

11

21



Packaging Information:

PSM1350B Series 0.36~6.8uH Iron alloy Molding SMD High Current Inductors Chokes Square
