PSM0750 Series 0.36~47uH Iron alloy Molding SMD High Current Inductors Chokes Square Size

China PSM0750 Series 0.36~47uH Iron alloy Molding SMD High Current Inductors Chokes Square Size supplier
PSM0750 Series 0.36~47uH Iron alloy Molding SMD High Current Inductors Chokes Square Size supplier PSM0750 Series 0.36~47uH Iron alloy Molding SMD High Current Inductors Chokes Square Size supplier PSM0750 Series 0.36~47uH Iron alloy Molding SMD High Current Inductors Chokes Square Size supplier PSM0750 Series 0.36~47uH Iron alloy Molding SMD High Current Inductors Chokes Square Size supplier

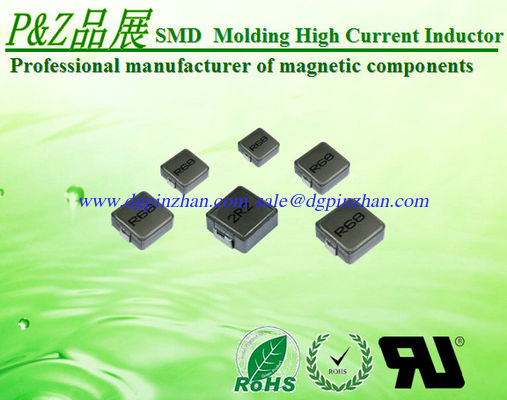

Large Image :  PSM0750 Series 0.36~47uH Iron alloy Molding SMD High Current Inductors Chokes Square Size

Product Details:

Place of Origin: Dongguan, China
Brand Name: P&Z
Certification: ISO9001:2015
Model Number: PSM0750 Series

Payment & Shipping Terms:

Minimum Order Quantity: 1Reel
Price: To be confirmed
Packaging Details: Reel+Carton
Delivery Time: around 3-4 Weeks
Payment Terms: T / T in advance
Supply Ability: 1KK
Contact Now
Detailed Product Description

PSM0750 Series 0.36~47uH Iron alloy Molding SMD High Current Inductors Chokes Square Size

PSM0750 Series SMD High Current Inductors

Dimensions (mm):7.0 x7.5x5.0

Inductance Range(uH):0.36~ 47.0

DCR Range(mΩ):3.2~247

Heat RatingCurrent DC Idc (A):2.0~ 21.0

Saturation Current DC Isat (A):3.0 ~ 25.0

Features:
High performance (Isat) realized by metal dust core.
Low profile:Thickness max. 5.0 mm
Low loss realized with low DCR Capable of corresponding high frequency (1MHz)
Design to customer requirement
Application:
DC/DC converter for CPU in Notebook PC
Thin type on-board power supply module for exchangerVRM for server.

P&Z Part Number

L0 @ (0A)

Inductance

( μH ) ±20%

DCR(mΩ)

Heat Rating Current

DC Amps. Idc ( A )

Saturation Current

DC Amps. Isat ( A )

Typical

Maximum

Typical

Typical

 PSM0750-R36M

0.36

3.2

3.5

21

25

 PSM0750-R56M

0.56

3.4

3.6

20

18

 PSM0750-R68M

0.68

3.9

4.2

18

17

 PSM0750-R82M

0.82

4.6

4.9

16.5

16

 PSM0750-1R0M

1.00

6.5

8,5

10

16

 PSM0750-1R5M

1.50

8.5

12

8

14

 PSM0750-2R2M

2.20

11

14

7

12

 PSM0750-3R3M

3.30

18

22

6.5

11

 PSM0750-4R7M

4.70

22

30

6

10

 PSM0750-6R8M

6.80

33

45

4.5

9

 PSM0750-220M

22.00

108

140

2.2

4

 PSM0750-330M

33.00

160

210

2

4

 PSM0750-470M

47.00

192

247

2

3
