PSM0724 Series 0.1~10uH Iron alloy Molding SMD High Current Inductors Chokes Square Size
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description

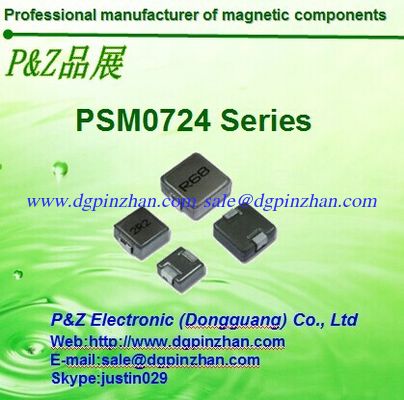

PSM0724 Series SMD High Current Inductors
Dimensions (mm):7.0 x7.5x 2.5
Inductance Range(uH):0.1~10.0
DCR Range(mΩ):1.5~101.0
Heat RatingCurrent DC Idc (A):3.1~ 30.0
Saturation Current DC Isat (A):4.0 ~70.0
Features:
High performance (Isat) realized by metal dust core.
Low profile:Thickness max. 2.5mm
Low loss realized with low DCR Capable of corresponding high frequency (1MHz)
Design to customer requirement
Application:
DC/DC converter for CPU in Notebook PC
Thin type on-board power supply module for exchangerVRM for server.
|
P&Z Part Number |
L0 @ (0A) Inductance ( μH ) ±20% |
DCR(mΩ) |
Heat Rating Current DC Amps. Idc ( A ) |
Saturation Current DC Amps. Isat ( A ) |
|
|
Typical |
Maximum |
Typical |
Typical |
||
|
PSM0724-R10M |
0.10 |
1.5 |
1.7 |
30.0 |
70.0 |
|
PSM0724-R22M |
0.22 |
2.6 |
3.2 |
21.0 |
34.0 |
|
PSM0724-R33M |
0.33 |
3.5 |
4.1 |
18.0 |
24.5 |
|
PSM0724-R47M |
0.47 |
4.5 |
5.1 |
15.0 |
22.0 |
|
PSM0724-R56M |
0.56 |
5.9 |
6.5 |
13.0 |
17.0 |
|
PSM0724-R82M |
0.82 |
8.3 |
9.5 |
11.0 |
14.0 |
|
PSM0724-1R0M |
1.0 |
11.2 |
13.5 |
9.0 |
16.0 |
|
PSM0724-1R5M |
1.5 |
17.0 |
20.0 |
9.0 |
15.0 |
|
PSM0724-2R2M |
2.2 |
23.0 |
28.0 |
7.0 |
14.0 |
|
PSM0724-3R3M |
3.3 |
31.0 |
39.0 |
5.5 |
13.0 |
|
PSM0724-4R7M |
4.7 |
41.0 |
50.0 |
5.0 |
10.0 |
|
PSM0724-5R6M |
5.6 |
51.0 |
60.0 |
5.0 |
6.5 |
|
PSM0724-6R8M |
6.8 |
57.0 |
70.0 |
4.0 |
6.0 |
|
PSM0724-100M |
10 |
92.0 |
101.0 |
3.1 |
4.0 |
