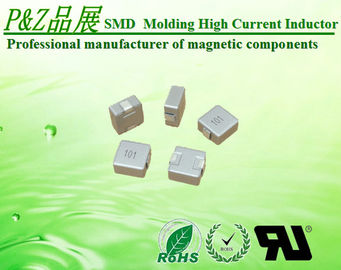

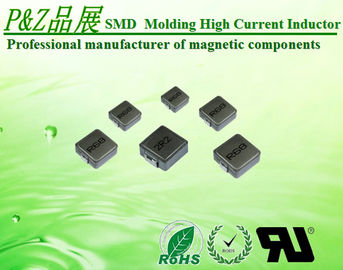

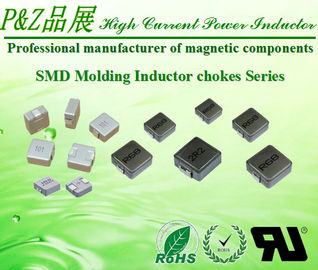

PSM0612 Series 0.56~10uH Iron alloy Molding SMD High Current Inductors Chokes Square Size

PSM0612 Series 0.56~10uH Iron alloy Molding SMD High Current Inductors Chokes Square Size



Dimensions (mm):7.0 x7.5x 1.3

Inductance Range(uH):0.56~10.0

DCR Range(mΩ):13.5~290

Heat RatingCurrent DC Idc (A):2.0 ~ 7.0

Saturation Current DC Isat (A):2.2 ~11.0

Features:
High performance (Isat) realized by metal dust core.
Low profile:Thickness max. 1.3mm
Low loss realized with low DCR Capable of corresponding high frequency (1MHz)
Design to customer requirement

Application:
DC/DC converter for CPU in Notebook PC
Thin type on-board power supply module for exchangerVRM for server.

P&Z Part Number



L0 @ (0A)

Inductance

( μH ) ±20%

DCR(mΩ)

Heat Rating Current

DC Amps. Idc ( A )

Saturation Current

DC Amps. Isat ( A )

Typical

Maximum

Typical

Typical

 PSM0612-R56M

 0.56

 13.5

 15.5

 7.0

 11.0

 PSM0612-R68M

 0.68

 15.0

 17.5

 6.7

 9.0

 PSM0612-R82M

 0.82

 21.5

 24.5

 6.3

 8.0

 PSM0612-1R0M

 1.0

 25.0

 29.0

 6.0

 7.5

 PSM0612-2R2M

 2.2

 51.5

 59.0

 4.0

 5.0

 PSM0612-3R3M

 3.3

 80.0

 92.0

 3.0

 4.0

 PSM0612-4R7M

 4.7

 106.0

 122.0

 2.7

 3.5

 PSM0612-6R8M

 6.8

 185.0

 210.0

 2.2

 2.8

 PSM0612-100M

 10.0

 250.0

 290.0

 2.0

 2.2
