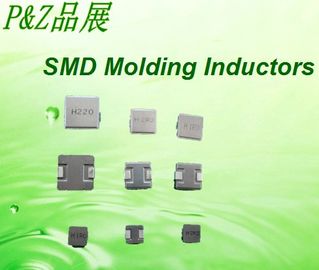

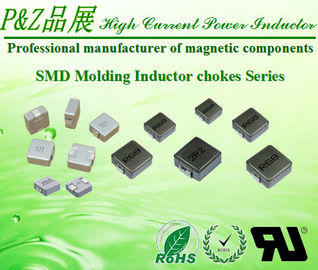

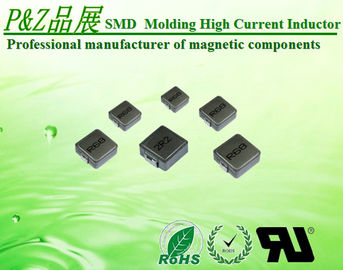

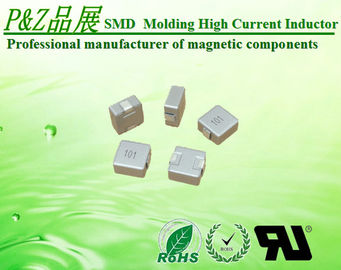

PSM0518 Series 0.47~10uH Iron alloy Molding SMD High Current Inductors Chokes Square Size

Large Image : PSM0518 Series 0.47~10uH Iron alloy Molding SMD High Current Inductors Chokes Square Size

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	P&Z
Certification:	ISO9001:2015
Model Number:	PSM0518 Series

Payment & Shipping Terms:

Minimum Order Quantity:	1Reel
Price:	To be confirmed
Packaging Details:	Reel+Carton
Delivery Time:	around 3-4 Weeks
Payment Terms:	T / T in advance
Supply Ability:	1KK

Contact Now

Detailed Product Description

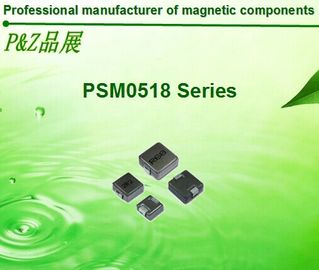

PSM0518 Series SMD High Current Inductors

Dimensions (mm):5.2 x5.5x 1.8

Inductance Range(uH):0.47~10.0

DCR Range(mΩ):7.7~155

Heat RatingCurrent DC Idc (A):2.5 ~ 10.5

Saturation Current DC Isat (A):3.0 ~15.5

Features:
High performance (Isat) realized by metal dust core.
Low profile:Thickness max. 1.8mm
Low loss realized with low DCR Capable of corresponding high frequency (3MHz)
Design to customer requirement
Application:
DC/DC converter for CPU in Notebook PC
Thin type on-board power supply module for exchangerVRM for server.

P&Z Part Number	L0 @ (0A) Inductance ( μH ) ±20%	DCR(mΩ)		Heat Rating Current DC Amps. Idc ( A )	Saturation Current DC Amps. Isat ( A )
P&Z Part Number	L0 @ (0A) Inductance ( μH ) ±20%	Typical	Maximum	Typical	Typical
PSM0518-R47M	0.47	7.7	9.0	10.5	15.5
PSM0518-R56M	0.56	8.0	10.0	9.5	15.0
PSM0518-R68M	0.68	12.0	18.0	8.9	11.2
PSM0518-1R0M	1.0	15.0	17.0	8.0	9.0
PSM0518-1R2M	1.2	17.0	20.0	7.5	8.0
PSM0518-2R2M	2.2	30.0	35.0	5.0	6.5
PSM0518-3R3M	3.3	52.0	58.0	4.5	5.0
PSM0518-4R7M	4.7	78.0	85.0	3.5	4.0
PSM0518-6R8M	6.8	107.0	120.0	2.8	3.4
PSM0518-8R2M	8.2	131.0	145.0	2.6	3.1
PSM0518-100M	10.0	140.0	155.0	2.5	3.0
