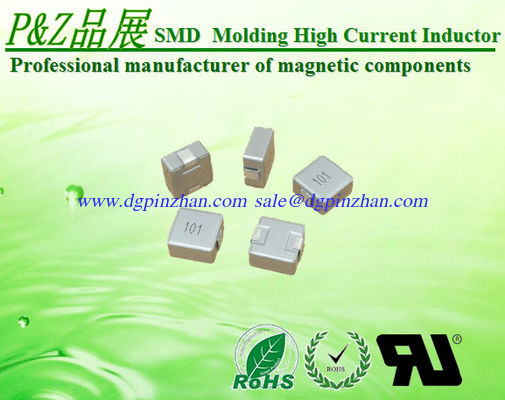

PSM0515 Series0.33~15uH Iron alloy Molding SMD High Current Inductors Chokes Square Size

Large Image : PSM0515 Series0.33~15uH Iron alloy Molding SMD High Current Inductors Chokes Square Size

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	P&Z
Certification:	ISO9001:2015
Model Number:	PSM0515 Series

Payment & Shipping Terms:

Minimum Order Quantity:	1Reel
Price:	To be confirmed
Packaging Details:	Reel+Carton
Delivery Time:	around 3-4 Weeks
Payment Terms:	T / T in advance
Supply Ability:	1KK

Contact Now

Detailed Product Description

PSM0515 Series SMD High Current Inductors

Dimensions (mm):5.2 x5.5x 1.5

Inductance Range(uH):0.33~15.0

DCR Range(mΩ):8.0~350

Heat RatingCurrent DC Idc (A):1.3 ~ 10.0

Saturation Current DC Isat (A):2.3 ~15.0

Features:
High performance (Isat) realized by metal dust core.
Low profile:Thickness max. 1.5mm
Low loss realized with low DCR Capable of corresponding high frequency (3MHz)
Design to customer requirement
Application:
DC/DC converter for CPU in Notebook PC
Thin type on-board power supply module for exchangerVRM for server.

P&Z Part Number	L0 @ (0A) Inductance ( μH ) ±20%	DCR(mΩ)		Heat Rating Current DC Amps. Idc ( A )	Saturation Current DC Amps. Isat ( A )
P&Z Part Number	L0 @ (0A) Inductance ( μH ) ±20%	Typical	Maximum	Typical	Typical
PSM0515-R33M	0.33	8.0	9.0	10.0	15.0
PSM0515-1R0M	1.0	20.0	23.0	6.5	9.0
PSM0515-1R2M	1.2	29.3	33.7	5.3	8.0
PSM0515-2R2M	2.2	58.0	64.0	3.3	6.0
PSM0515-3R3M	3.3	65.0	72.0	3.2	5.0
PSM0515-4R7M	4.7	95.0	106.0	3.0	4.0
PSM0515-6R8M	6.8	120.0	130.0	2.5	3.2
PSM0515-100M	10.0	153.0	170.0	2.0	3.0
PSM0515-150M	15.0	310.0	350.0	1.3	2.3
