PSM0420 Series 0.1~2.2uH Iron alloy Molding SMD High Current Inductors Chokes Square Size

PSM0420 Series 0.1~2.2uH Iron alloy Molding SMD High Current Inductors Chokes Square Size

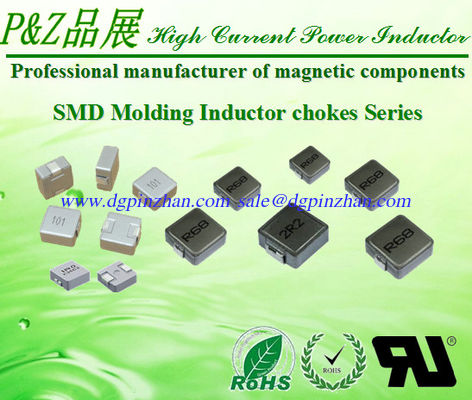

PSM0420 Series SMD High Current Inductors

Dimensions (mm):4.5 x 5.5x 2.1

Inductance Range(uH):0.1 ~ 4.7

DCR Range(mΩ):3.5 ~ 105

Heat RatingCurrent DC Idc (A):2.2 ~ 12

Saturation Current DC Isat (A):3.0 ~ 22

Features:
High performance (Isat) realized by metal dust core.
Low profile:Thickness max. 2.1mm
Low loss realized with low DCR Capable of corresponding high frequency (3MHz)
Design to customer requirement
Application:
DC/DC converter for CPU in Notebook PC
Thin type on-board power supply module for exchangerVRM for server

P&Z Part Number

L0

Inductance

( μH )±20%

@ (0A)

DCR(mΩ)

Heat Rating Current

DC Amps. Idc ( A )

Saturation Current

DC Amps. Isat ( A )

Typical

Maximum

Typical

Typical

 PSM0420-R10M

 0.10

 3.5

 4.0

 12.0

 22.0

 PSM0420-R22M

 0.22

 6.0

 6.6

 9.0

 12.5

 PSM0420-R47M

 0.47

 12.5

 14.0

 7.0

 9.5

 PSM0420-R56M

 0.56

 14.0

 16.0

 6.5

 10.0

 PSM0420-R68M

 0.68

 16.0

 18.0

 6.0

 9.0

 PSM0420-1R0M

 1.0

 24.0

 27.0

 4.5

 7.0

 PSM0420-1R2M

 1.2

 24.0

 27.0

 4.5

 7.0

 PSM0420-1R5M

 1.5

 38.0

 46.0

 4.0

 6.0

 PSM0420-2R2M

 2.2

 52.0

 58.0

 3.0

 5.0

 PSM0420-3R3M

 3.3

 74.0

 87.0

 2.5

 4.0

 PSM0420-4R7M

 4.7

 92.0

 105.0

 2.2

 3.0
