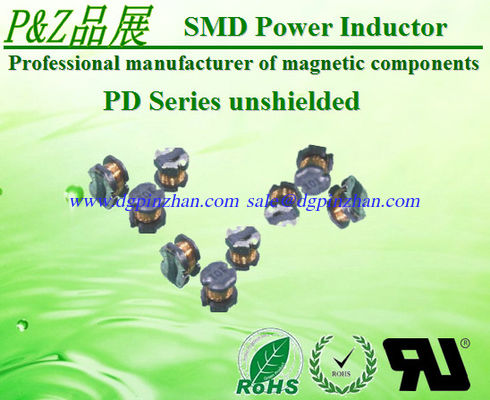

PD107 Series 1.0μH~1200μH SMD Unshield Power Inductors Round Size
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Nickel Zinc Ferrite | Wire Resistant Temperature: | 155~180℃ |
|---|---|---|---|
| Shape: | Round Size | ||
| Highlight: | PD10t,smd power inductor |
||
PD107 Series SMD Power Inductors
Inductance Range:1.0μH~1200μH
Temperature Range:－40℃～＋125℃
★Quantity / Reel:500pcs
★Small products,Round 10.0 mm, Height 6.5 Type
★The use of carrier tape package for SMT reflow soldering process
★Widely use in DC-DC converter/LCD TV/Notebook/
PDA/MP3 & MP4 player/Digital camera/DVD etc.
★Design to customer requirement
|
P&Z Part Number |
Test Condition |
Inductance (μH) |
Tolerance (%) |
D.C.R(Ω) Max. |
Ratted Current(A) |
|
PD107-1R0M |
100KHz/0.3V |
1.0 |
±20 |
8m |
9.50 |
|
PD107-1R8M |
100KHz/0.3V |
1.8 |
±20 |
11m |
8.60 |
|
PD107-2R2M |
100KHz/0.3V |
2.2 |
±20 |
12m |
8.00 |
|
PD107-3R3M |
100KHz/0.3V |
3.3 |
±20 |
16m |
6.80 |
|
PD107-3R9M |
100KHz/0.3V |
3.9 |
±20 |
17m |
6.35 |
|
PD107-4R7M |
100KHz/0.3V |
4.7 |
±20 |
19m |
5.45 |
|
PD107-5R6M |
100KHz/0.3V |
5.6 |
±20 |
24m |
4.30 |
|
PD107-6R8M |
100KHz/0.3V |
6.8 |
±20 |
35m |
3.52 |
|
PD107-8R2M |
100KHz/0.3V |
8.2 |
±20 |
45m |
3.51 |
|
PD107-100M |
1KHz/0.3V |
10 |
±20 |
60m |
3.50 |
|
PD107-120M |
1KHz/0.3V |
12 |
±20 |
70m |
3.40 |
|
PD107-150K,M |
1KHz/0.3V |
15 |
±10,±20 |
80m |
3.10 |
|
PD107-220K,M |
1KHz/0.3V |
22 |
±10,±20 |
0.10 |
2.60 |
|
PD107-330K,M |
1KHz/0.3V |
33 |
±10,±20 |
0.12 |
2.30 |
|
PD107-390K,M |
1KHz/0.3V |
39 |
±10,±20 |
0.14 |
2.10 |
|
PD107-470K,M |
1KHz/0.3V |
47 |
±10,±20 |
0.17 |
1.95 |
|
PD107-560K,M |
1KHz/0.3V |
56 |
±10,±20 |
0.19 |
1.85 |
|
PD107-680K,M |
1KHz/0.3V |
68 |
±10,±20 |
0.22 |
1.65 |
|
PD107-820K,M |
1KHz/0.3V |
82 |
±10,±20 |
0.25 |
1.50 |
|
PD107-101K,M |
1KHz/0.3V |
100 |
±10,±20 |
0.35 |
1.40 |
|
PD107-151K,M |
1KHz/0.3V |
150 |
±10,±20 |
0.47 |
1.20 |
|
PD107-221K,M |
1KHz/0.3V |
220 |
±10,±20 |
0.73 |
0.95 |
|
PD107-331K,M |
1KHz/0.3V |
330 |
±10,±20 |
1.15 |
0.80 |
|
PD107-391K,M |
1KHz/0.3V |
390 |
±10,±20 |
1.30 |
0.75 |
|
PD107-471K,M |
1KHz/0.3V |
470 |
±10,±20 |
1.48 |
0.65 |
|
PD107-561K,M |
1KHz/0.3V |
560 |
±10,±20 |
1.90 |
0.60 |
|
PD107-681K,M |
1KHz/0.3V |
680 |
±10,±20 |
2.25 |
0.50 |
|
PD107-821K,M |
1KHz/0.3V |
820 |
±10,±20 |
2.55 |
0.48 |
|
PD107-102K,M |
1KHz/0.3V |
1000 |
±10,±20 |
3.00 |
0.46 |
|
PD107-122K,M |
1KHz/0.3V |
1200 |
±10,±20 |
3.50 |
0.35 |
1,Inductance is measured with a LCR meter:HP4284A & 3532-50 or equivalent.
2,D.C .R is measured with a Digital Multimeter TH2512B or equivalent.
3,Rated Current:The rated current is the current at which the inductance decreases by 25% from the initial value or the temperature rise is △T＝40℃ ,whichever is smaller(Ta＝20℃).
