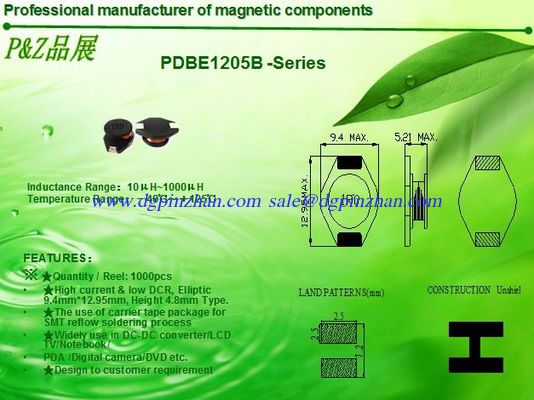

PDBE1205 Series High current unshielded SMD Power Inductors

PDBE1205 Series SMD Power Inductors

Inductance Range: 1.0μH~1000μH

Temperature Range:-40℃~+125℃

★Quantity / Reel: 1000pcs

★High current & low DCR, Elliptic 9.4mm*12.95mm, Height 4.8mm Type.

★The use of carrier tape package for SMT reflow soldering process

★Widely use in DC-DC converter/LCD TV/Notebook/

PDA/MP3 & MP4 player/Digital camera/DVD etc.

★Design to customer requirement.

P&Z Part Number

Test Condition

Inductance  (μH)

Tolerance(%)

D.C.R(mΩ) Max.

Rated Current

Isat(A)

Irms(A)

PDBE1205-1R0M

100KHz/1.0V

1.0

±20

9.0

9.00

6.80

PDBE1205-1R5M

100KHz/1.0V

1.5

±20

10.0

8.00

6.40

PDBE1205-2R2M

100KHz/1.0V

2.2

±20

12.0

7.00

6.10

PDBE1205-3R3M

100KHz/1.0V

3.3

±20

15.0

6.40

5.40

PDBE1205-4R7M

100KHz/1.0V

4.7

±20

18.0

5.40

4.80

PDBE1205-6R8M

100KHz/1.0V

6.8

±20

27.0

4.60

4.40

PDBE1205-100M

100KHz/1.0V

10

±20

38.0

3.80

3.90

PDBE1205-150M

100KHz/1.0V

15

±20

46.0

3.00

3.10

PDBE1205-220M

100KHz/1.0V

22

±20

85.0

2.60

2.70

PDBE1205-330M

100KHz/1.0V

33

±20

100

2.00

2.10

PDBE1205-470M

100KHz/1.0V

47

±20

140

1.60

1.80

PDBE1205-680M

100KHz/1.0V

68

±20

200

1.40

1.50

PDBE1205-101M

100KHz/1.0V

100

±20

280

1.20

1.30

PDBE1205-151M

100KHz/1.0V

150

±20

400

1.00

1.00

PDBE1205-221M

100KHz/1.0V

220

±20

610

0.80

0.80

PDBE1205-331M

100KHz/1.0V

330

±20

1020

0.60

0.60

PDBE1205-102M

100KHz/1.0V

1000

±20

3000

0.30

0.30

 1.Inductance is measured with a LCR meter:HP4284A & 3532-50 or equivalent.
2.D.C .R is measured with a Digital Multimeter TH2512B or equivalent.
3.Rated Current:The rated current is the current at which the inductance decreases by 25% from the initial value
or the temperature rise is △T=40℃ ,whichever is smaller(Ta=20℃).
