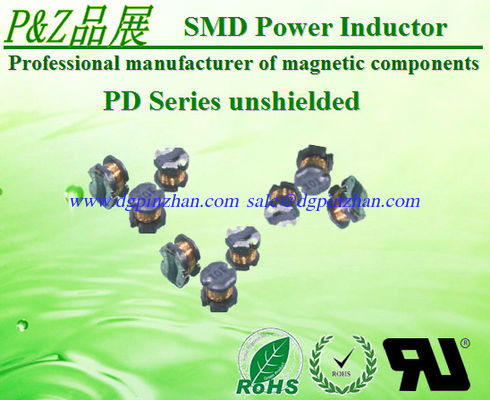

PD75 Series 1.2μH~1000μH SMD Unshield Power Inductors Round Size
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Core Material: | Nickel Zinc Ferrite | Wire Resistant Temperature: | 155~180℃ |
|---|---|---|---|
| Shape: | Round Size | Size: | 7.8*7.0*5.0 |
| Highlight: | PD75,smd power inductor |
||
PD75 Series SMD Power Inductors
Inductance Range:1.2μH~1000μH
Temperature Range:－40℃～＋125℃
★Quantity/Reel:1000pcs
★Small products,Round 7.8mm, Height 5.0 Type.
★The use of carrier tape package for SMT reflow soldering process
★Widely use in DC-DC converter/LCD TV/Notebook/
PDA/MP3 & MP4 player/Digital camera/DVD etc.
★Design to customer requirement
|
P&Z PartNumber |
Test Condition |
Inductance (μH) |
Tolerance (%) |
D.C.R(Ω) Max. |
Rated Current(A) |
|
PD75-1R2M |
100KHz/0.3V |
1.2 |
±20 |
15m |
7.50 |
|
PD75-1R8M |
100KHz/0.3V |
1.8 |
±20 |
20m |
6.00 |
|
PD75-2R2M |
100KHz/0.3V |
2.2 |
±20 |
23m |
5.30 |
|
PD75-3R3M |
100KHz/0.3V |
3.3 |
±20 |
28m |
4.50 |
|
PD75-4R7M |
100KHz/0.3V |
4.7 |
±20 |
45m |
4.00 |
|
PD75-5R6M |
100KHz/0.3V |
5.6 |
±20 |
48m |
3.60 |
|
PD75-6R8M |
100KHz/0.3V |
6.8 |
±20 |
58m |
3.20 |
|
PD75-8R2M |
100KHz/0.3V |
8.2 |
±20 |
70m |
2.80 |
|
PD75-100K,M |
1KHz/0.3V |
10 |
±10,±20 |
70m |
2.30 |
|
PD75-150K,M |
1KHz/0.3V |
15 |
±10,±20 |
90m |
1.80 |
|
PD75-180K,M |
1KHz/0.3V |
18 |
±10,±20 |
100m |
1.60 |
|
PD75-220K,M |
1KHz/0.3V |
22 |
±10,±20 |
110m |
1.50 |
|
PD75-270K,M |
1KHz/0.3V |
27 |
±10,±20 |
120m |
1.30 |
|
PD75-330K,M |
1KHz/0.3V |
33 |
±10,±20 |
130m |
1.20 |
|
PD75-390K,M |
1KHz/0.3V |
39 |
±10,±20 |
0.160 |
1.10 |
|
PD75-470K,M |
1KHz/0.3V |
47 |
±10,±20 |
0.180 |
1.10 |
|
PD75-560K,M |
1KHz/0.3V |
56 |
±10,±20 |
0.240 |
0.94 |
|
PD75-680K,M |
1KHz/0.3V |
68 |
±10,±20 |
0.280 |
0.85 |
|
PD75-820K,M |
1KHz/0.3V |
82 |
±10,±20 |
0.370 |
0.78 |
|
PD75-101K,M |
1KHz/0.3V |
100 |
±10,±20 |
0.430 |
0.72 |
|
PD75-151K,M |
1KHz/0.3V |
150 |
±10,±20 |
0.640 |
0.58 |
|
PD75-181K,M |
1KHz/0.3V |
180 |
±10,±20 |
0.710 |
0.51 |
|
PD75-221K,M |
1KHz/0.3V |
220 |
±10,±20 |
0.960 |
0.49 |
|
PD75-271K,M |
1KHz/0.3V |
270 |
±10,±20 |
1.110 |
0.42 |
|
PD75-391K,M |
1KHz/0.3V |
390 |
±10,±20 |
1.770 |
0.36 |
|
PD75-471K,M |
1KHz/0.3V |
470 |
±10,±20 |
1.960 |
0.34 |
|
PD75-681K,M |
1KHz/0.3V |
680 |
±10,±20 |
2.480 |
0.30 |
|
PD75-821K,M |
1KHz/0.3V |
820 |
±10,±20 |
3.400 |
0.30 |
|
PD75-102K,M |
1KHz/0.3V |
1000 |
±10,±20 |
5.000 |
0.17 |
1.Inductance is measured with a LCR meter:HP4284A & 3532-50 or equivalent.
2.D.C .R is measured with a Digital Multimeter TH2512B or equivalent.
3.Rated Current:The rated current is the current at which the inductance decreases by 25% from the initial value or the temperature rise is △T＝40℃ ,whichever is smaller(Ta＝20℃).
