PD52 Series 0.82μH~330μH SMD Unshield Power Inductors Round Size
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Shape: | Round Size | Size: | 5.8*5.2*2.5 |
|---|---|---|---|
| Core Material: | Nickel Zinc Ferrite | Wire Resistant Temperature: | 155~180℃ |
| Highlight: | PD52,smd power inductor |
||

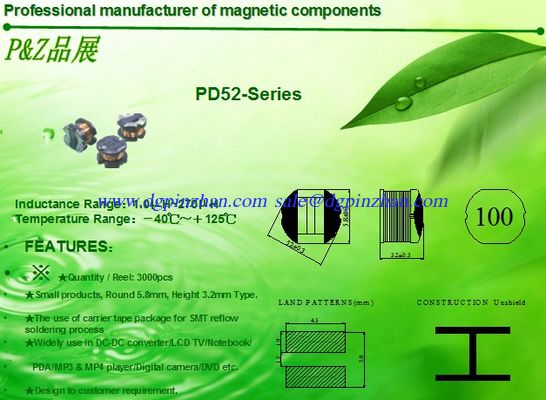

PD52 Series SMD Power Inductors
Inductance Range:0.82μH~330μH
Temperature Range:－40℃～＋125℃
★Quantity / Reel:1500pcs
★Small products,Round 5.8mm, Height 2.5Type.
★The use of carrier tape package for SMT reflow soldering process
★Widely use in DC-DC converter/LCD TV/Notebook/
PDA/MP3 & MP4 player/Digital camera/DVD etc.
★Design to customer requirement
|
P&Z Part Number |
Test Condition |
Inductance (μH) |
Tolerance (%) |
D.C.R(Ω) Max. |
Rated Current(A) |
|
PD52-R82M |
100KHz/0.3V |
0.82 |
±20 |
40m |
5.00 |
|
PD52-1R2M |
100KHz/0.3V |
1.2 |
±20 |
60m |
4.00 |
|
PD52-1R8M |
100KHz/0.3V |
1.8 |
±20 |
70m |
3.50 |
|
PD52-2R2M |
100KHz/0.3V |
2.2 |
±20 |
80m |
3.20 |
|
PD52-3R3M |
100KHz/0.3V |
3.3 |
±20 |
120m |
2.40 |
|
PD52-3R9M |
100KHz/0.3V |
3.9 |
±20 |
140m |
2.00 |
|
PD52-4R7M |
100KHz/0.3V |
4.7 |
±20 |
150m |
1.80 |
|
PD52-5R6M |
100KHz/0.3V |
5.6 |
±20 |
160m |
1.50 |
|
PD52-6R8M |
100KHz/0.3V |
6.8 |
±20 |
170m |
1.40 |
|
PD52-8R2M |
100KHz/0.3V |
8.2 |
±20 |
200m |
1.30 |
|
PD52-100K,M |
1KHz/0.3V |
10 |
±10,±20 |
230m |
1.10 |
|
PD52-120K,M |
1KHz/0.3V |
12 |
±10,±20 |
250m |
1.05 |
|
PD52-150K,M |
1KHz/0.3V |
15 |
±10,±20 |
300m |
1.00 |
|
PD52-180K,M |
1KHz/0.3V |
18 |
±10,±20 |
350m |
0.90 |
|
PD52-220K,M |
1KHz/0.3V |
22 |
±10,±20 |
400m |
0.85 |
|
PD52-270K,M |
1KHz/0.3V |
27 |
±10,±20 |
500m |
0.75 |
|
PD52-330K,M |
1KHz/0.3V |
33 |
±10,±20 |
550m |
0.70 |
|
PD52-390K,M |
1KHz/0.3V |
39 |
±10,±20 |
650m |
0.60 |
|
PD52-470K,M |
1KHz/0.3V |
47 |
±10,±20 |
750m |
0.55 |
|
PD52-560K,M |
1KHz/0.3V |
56 |
±10,±20 |
950m |
0.50 |
|
PD52-680K,M |
1KHz/0.3V |
68 |
±10,±20 |
1.20 |
0.45 |
|
PD52-820K,M |
1KHz/0.3V |
82 |
±10,±20 |
1.40 |
0.40 |
|
PD52-101K,M |
1KHz/0.3V |
100 |
±10,±20 |
1.75 |
0.35 |
|
PD52-121K,M |
1KHz/0.3V |
120 |
±10,±20 |
2.00 |
0.25 |
|
PD52-151K,M |
1KHz/0.3V |
150 |
±10,±20 |
2.60 |
0.22 |
|
PD52-181K,M |
1KHz/0.3V |
180 |
±10,±20 |
3.00 |
0.20 |
|
PD52-221K,M |
1KHz/0.3V |
220 |
±10,±20 |
3.70 |
0.18 |
|
PD52-271K,M |
1KHz/0.3V |
270 |
±10,±20 |
4.00 |
0.19 |
|
PD52-331K,M |
1KHz/0.3V |
330 |
±10,±20 |
4.20 |
0.20 |
1.Inductance is measured with a LCR meter:HP4284A & 3532-50 or equivalent.
2.D.C .R is measured with a Digital Multimeter TH2512B or equivalent.
3.Rated Current:The rated current is the current at which the inductance decreases by 25% from the initial value or the temperature rise is △T＝40℃ ,whichever is smaller(Ta＝20℃).
