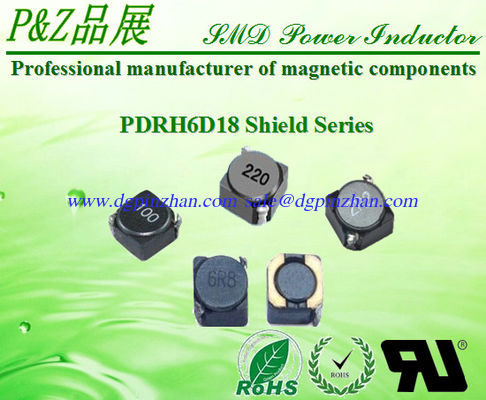

PDRH6D18 Series 1.0μH~120μH SMD Shield Power Inductors Round Size

Large Image : PDRH6D18 Series 1.0μH~120μH SMD Shield Power Inductors Round Size

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	P&Z
Certification:	ISO9001:2015
Model Number:	PDRH6D18 Series

Payment & Shipping Terms:

Minimum Order Quantity:	2000PCS
Price:	To be confirmed
Packaging Details:	Reel+Carton
Delivery Time:	around 3-4 Weeks
Payment Terms:	T / T in advance
Supply Ability:	1000k

Contact Now

Detailed Product Description

PDRH6D28 Series SMD Power Inductors

Features:

Inductance Range: 1.0μH~120μH

Temperature Range:－40℃～＋125℃

★Quantity / Reel:2000pcs

★Small products, Quadrate6.0mm Max, Height 3.0mm Type.

★The use of carrier tape package for SMT reflow soldering process

★Widely use in DC-DC converter/LCD TV/Notebook/PDA/MP3 & MP4 player/Digital camera/DVD etc.

★Design to customer requirement.

Electrical Characteristics:

Part Number	Test Condition	Inductance (μH)	Tolerance(%)	D.C.R(Ω) Max.	RatedCurrent(A)
PDRH6D18-1R0M,N	10KHz/0.1V	1.0	±20,±30	23m	4.00
PDRH6D18-1R8M,N	10KHz/0.1V	1.8	±20,±30	30m	3.50
PDRH6D18-2R7M,N	10KHz/0.1V	2.7	±20,±30	44m	2.75
PDRH6D18-3R9M,N	10KHz/0.1V	3.9	±20,±30	35m	2.35
PDRH6D18-4R7M,N	10KHz/0.1V	4.7	±20,±30	57m	2.20
PDRH6D18-6R8M,N	10KHz/0.1V	6.8	±20,±30	66m	1.70
PDRH6D18-8R2M,N	10KHz/0.1V	8.2	±20,±30	102m	1.50
PDRH6D18-100M,N	10KHz/0.1V	10	±20,±30	122m	1.30
PDRH6D18-150M,N	10KHz/0.1V	15	±20,±30	156m	1.10
PDRH6D18-220M,N	10KHz/0.1V	22	±20,±30	237m	1.00
PDRH6D18-330M,N	10KHz/0.1V	33	±20,±30	275m	0.70
PDRH6D18-470M,N	10KHz/0.1V	47	±20,±30	467m	0.60
PDRH6D18-560M,N	10KHz/0.1V	56	±20,±30	756m	0.55
PDRH6D18-680M,N	10KHz/0.1V	68	±20,±30	0.947	0.50
PDRH6D18-820M,N	10KHz/0.1V	82	±20,±30	1.071	0.45
PDRH6D18-101M,N	10KHz/0.1V	100	±20,±30	1.212	0.40
PDRH6D18-121M,N	10KHz/0.1V	120	±20,±30	1.612	0.35

1.Inductance is measured with a LCR meter:HP4284A & 3532-50 or equivalent.
2.D.C .R is measured with a Digital Multimeter TH2512B or equivalent.
3.Rated Current:The rated current is the current at which the inductance decreases by 25% from the initial value or the temperature rise is △T＝40℃ ,whichever is smaller(Ta＝20℃). PDRH6D18 Series 1.0μH~120μH SMD Shield Power Inductors Round Size
