PDRH3D11 Series 2.7μH~47μH SMD Shield Power Inductors Round Size

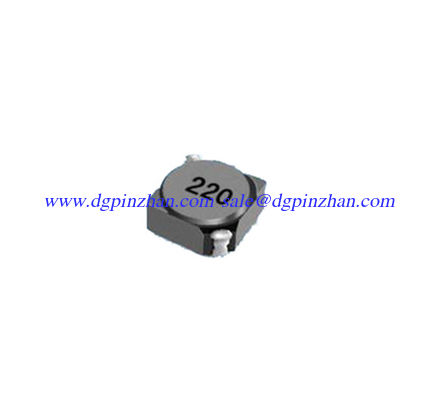

Large Image : PDRH3D11 Series 2.7μH~47μH SMD Shield Power Inductors Round Size

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	P&Z
Certification:	ISO9001:2015
Model Number:	PDRH3D11 Series

Payment & Shipping Terms:

Minimum Order Quantity:	3000PCS
Price:	To be confirmed
Packaging Details:	Reel+Carton
Delivery Time:	around 3-4 Weeks
Payment Terms:	T / T in advance
Supply Ability:	1000k

Contact Now

Detailed Product Description

PDRH3D11 Series 2.7μH~47μH SMD Shield Power Inductors Round Size

PDRH3D11 Series SMD Power Inductors

Features:

Inductance Range: 2.7μH~47μH

Temperature Range:－40℃～＋125℃

★Quantity / Reel:3000pcs

★Small products, Quadrate3.3mm Max, Height 1.15mm Type.

★The use of carrier tape package for SMT reflow soldering process

★Widely use in DC-DC converter/LCD TV/Notebook/PDA/MP3 & MP4 player/Digital camera/DVD etc.

★Design to customer requirement.

Electrical Characteristics:

Part Number	Test Condition	Inductance (μH)	Tolerance (%)	D.C.R(Ω) Max.	Rated Current(A)
PDRH3D11-2R7N	100KHz/0.1V	2.7	±30	0.105	1.80
PDRH3D11-4R7N	100KHz/0.1V	4.7	±30	0.156	1.65
PDRH3D11-6R8N	100KHz/0.1V	6.8	±30	0.225	1.50
PDRH3D11-8R2N	100KHz/0.1V	8.2	±30	0.294	1.35
PDRH3D11-100M	100KHz/0.1V	10	±20	0.338	1.20
PDRH3D11-120M	100KHz/0.1V	12	±20	0.418	1.1
PDRH3D11-150M	100KHz/0.1V	15	±20	0.550	1.00
PDRH3D11-180M	100KHz/0.1V	18	±20	0.628	0.95
PDRH3D11-220M	100KHz/0.1V	22	±20	0.731	0.85
PDRH3D11-330M	100KHz/0.1V	33	±20	0.855	0.80
PDRH3D11-470M	100KHz/0.1V	47	±20	0.978	0.76

1.Inductance is measured with a LCR meter:HP4284A & 3532-50 or equivalent.
2.D.C .R is measured with a Digital Multimeter TH2512B or equivalent.
3.Rated Current:The rated current is the current at which the inductance decreases by 25% from the initial value or the temperature rise is △T＝40℃ ,whichever is smaller(Ta＝20℃).

PDRH3D11 Series 2.7μH~47μH SMD Shield Power Inductors Round Size

♦Acceptable customers design cust
