PDR105 Series 10μH~470μH SMD Shield Power Inductors

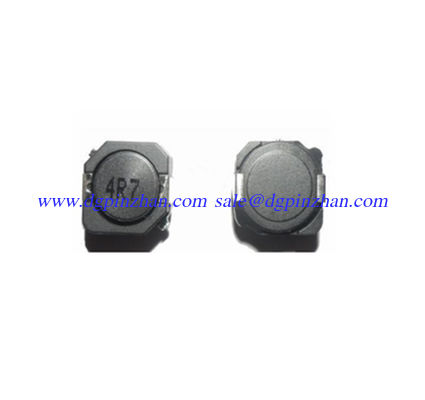

Large Image : PDR105 Series 10μH~470μH SMD Shield Power Inductors

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	P&Z
Certification:	ISO9001:2015
Model Number:	PDR105 Series

Payment & Shipping Terms:

Minimum Order Quantity:	500PCSl
Price:	To be confirmed
Packaging Details:	Reel+Carton
Delivery Time:	around 3-4 Weeks
Payment Terms:	T / T in advance
Supply Ability:	1000K

Contact Now

Detailed Product Description

PDR105 Series 10μH~470μH SMD Shield Power Inductors

PDR105 Series SMD Power Inductors

Inductance Range: 10μH~470μH

Temperature Range:－40℃～＋125℃

★Quantity / Reel: 500pcs

★Small products, Quadrate8.1mm Max, Height 5.0 mm Max.

★The use of carrier tape package for SMT reflow soldering process

★Widely use in DC-DC converter/LCD TV/Notebook/

PDA/MP3 & MP4 player/Digital camera/DVD etc.

★Design to customer requirement

P&Z Part Number	Test Condition	Inductance (μH)	Tolerance (%)	D.C.R(Ω) Max.	Rated Current(A)
PDR105-100M	1KHz/0.3V	10	±20	60m	2.06
PDR105-120M	1KHz/0.3V	12	±20	70m	1.94
PDR105-150M	1KHz/0.3V	15	±20	70m	1.72
PDR105-180M	1KHz/0.3V	18	±20	80m	1.58
PDR105-220M	1KHz/0.3V	22	±20	80m	1.42
PDR105-270M	1KHz/0.3V	27	±20	0.10	1.32
PDR105-330L,M	1KHz/0.3V	33	±15,±20	0.11	1.16
PDR105-390L,M	1KHz/0.3V	39	±15,±20	0.12	1.10
PDR105-470L,M	1KHz/0.3V	47	±15,±20	0.14	1.00
PDR105-560L,M	1KHz/0.3V	56	±15,±20	0.19	0.93
PDR105-680L,M	1KHz/0.3V	68	±15,±20	0.21	0.85
PDR105-820L,M	1KHz/0.3V	82	±15,±20	0.28	0.79
PDR105-101K,M	1KHz/0.3V	100	±10,±20	0.34	0.72
PDR105-121K,M	1KHz/0.3V	120	±10,±20	0.37	0.63
PDR105-151K,M	1KHz/0.3V	150	±10,±20	0.51	0.55
PDR105-181K,M	1KHz/0.3V	180	±10,±20	0.57	0.50
PDR105-221K,M	1KHz/0.3V	220	±10,±20	0.78	0.47
PDR105-271K,M	1KHz/0.3V	270	±10,±20	0.87	0.41
PDR105-331K,M	1KHz/0.3V	330	±10,±20	1.20	0.37
PDR105-391K,M	1KHz/0.3V	390	±10,±20	1.34	0.35
PDR105-471K,M	1KHz/0.3V	470	±10,±20	1.50	0.33

1.Inductance is measured with a LCR meter:HP4284A & 3532-50 or equivalent.
2.D.C .R is measured with a Digital Multimeter TH2512B or equivalent.
3.Rated Current:The rated current is the current at which the inductance decreases by 25% from the initial value or the temperature rise is △T＝40℃ ,whichever is smaller(Ta＝20℃).

PDR105 Series 10μH~470μH SMD Shield Power Inductors

♦Acceptable customers design cust
