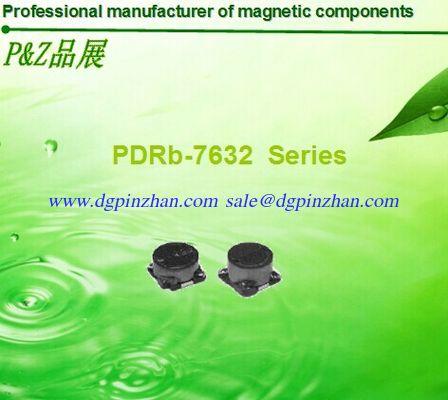

PDRB7632 Series SMD Power Inductors
Features:
Inductance Range: 3.3μH~100μH
Temperature Range:－40℃～＋125℃
★Quantity / Reel: 1000pcs
★High current & low DCR, Quadrate7.4mm Max, Heigh3.3mm Type.
★The use of carrier tape package for SMT reflow soldering process
★Widely use in DC-DC converter/LCD TV/Notebook/PDA/MP3 & MP4 player/Digital camera/DVD etc.
★Design to customer requirement.
Electrical Characteristics:
|
P&Z Part Number |
Test Condition |
Inductance (μH) |
Tolerance (%) |
D.C.R(mΩ) Max. |
Rated Current(A) |
|
PDRB7632-3R3M |
100KHz/0.3V |
3.3 |
±20 |
27.6 |
1.80 |
|
PDRB7632-4R7M |
100KHz/0.3V |
4.7 |
±20 |
43.2 |
1.60 |
|
PDRB7632-6R8M |
100KHz/0.3V |
6.8 |
±20 |
49.2 |
1.50 |
|
PDRB7632-100M |
1KHz/0.3V |
10 |
±20 |
63.9 |
1.30 |
|
PDRB7632-150M |
1KHz/0.3V |
15 |
±20 |
100.8 |
1.00 |
|
PDRB7632-220M |
1KHz/0.3V |
22 |
±20 |
132 |
0.86 |
|
PDRB7632-330M |
1KHz/0.3V |
33 |
±20 |
192 |
0.65 |
|
PDRB7632-470M |
1KHz/0.3V |
47 |
±20 |
288 |
0.57 |
|
PDRB7632-680M |
1KHz/0.3V |
68 |
±20 |
376 |
0.49 |
|
PDRB7632-101M |
1KHz/0.3V |
100 |
±20 |
540 |
0.35 |
1.Inductance is measured with a LCR meter:HP4284A & 3532-50 or equivalent.
2.D.C .R is measured with a Digital Multimeter TH2512B or equivalent.
3.Rated Current:The rated current is the current at which the inductance decreases by 25% from the initial value or the temperature rise is △T＝40℃ ,whichever is smaller(Ta＝20℃).
