PDRB1807 Series 10μH~1000μH Low resistance, competitive price, high quality round SMD power inductor

Large Image : PDRB1807 Series 10μH~1000μH Low resistance, competitive price, high quality round SMD power inductor

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	P&Z
Certification:	ISO9001:2015
Model Number:	PDRB1807 Series

Payment & Shipping Terms:

Minimum Order Quantity:	1Reel
Price:	To be confirmed
Packaging Details:	Reel+Carton
Delivery Time:	around 3-4 Weeks
Payment Terms:	T / T in advance
Supply Ability:	1000K

Contact Now

Detailed Product Description

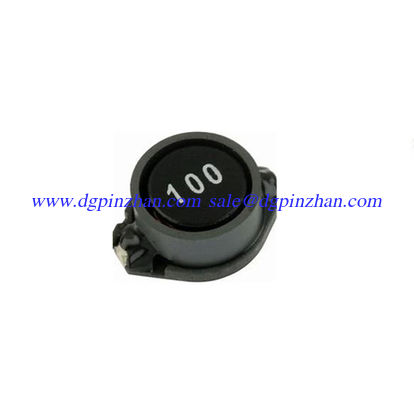

PDRB1807 Series 10μH~1000μH Low resistance, competitive price, high quality round SMD power inductor

PDRB1807 Series SMD Power Inductors

Features:

Inductance Range: 10μH~1000μH

Temperature Range:－40℃～＋125℃

★Quantity / Reel: 400pcs

★High current & low DCR, Elliptic15.24mm*18.54mm, Height7.62mm Type.

★The use of carrier tape package for SMT reflow soldering process

★Widely use in DC-DC converter/LCD TV/Notebook/PDA/MP3 & MP4 player/Digital camera/DVD etc.

★Design to customer requirement.

Electrical Characteristics

P&Z Part Number	Test Condition	Inductance (μH)	Tolerance (%)	D.C.R(Ω) Max.	Rated Current
P&Z Part Number	Test Condition	Inductance (μH)	Tolerance (%)	D.C.R(Ω) Max.	Isat(A)	Irms(A)
PDRB1807-100M	100KHz/1.0V	10	±20	0.040	8.00	3.90
PDRB1807-150M	100KHz/1.0V	15	±20	0.048	7.00	3.40
PDRB1807-220M	100KHz/1.0V	22	±20	0.059	6.00	3.10
PDRB1807-330M	100KHz/1.0V	33	±20	0.075	5.00	2.80
PDRB1807-470M	100KHz/1.0V	47	±20	0.097	4.00	2.40
PDRB1807-680M	100KHz/1.0V	68	±20	0.138	3.00	2.00
PDRB1807-101M	100KHz/1.0V	100	±20	0.207	2.40	1.70
PDRB1807-151M	100KHz/1.0V	150	±20	0.293	2.10	1.30
PDRB1807-221M	100KHz/1.0V	220	±20	0.470	1.90	1.10
PDRB1807-331M	100KHz/1.0V	330	±20	0.780	1.10	0.86
PDRB1807-471M	100KHz/1.0V	470	±20	1.080	1.10	0.73
PDRB1807-681M	100KHz/1.0V	680	±20	1.400	0.96	0.64
PDRB1807-102M	100KHz/1.0V	1000	±20	2.010	0.80	0.53

1.Inductance is measured with a LCR meter:HP4284A & 3532-50 or equivalent.
2.D.C .R is measured with a Digital Multimeter TH2512B or equivalent.
3.Rated Current:The rated current is the current at which the inductance decreases by 25% from the initial value or the temperature rise is △T＝40℃ ,whichever is smaller(Ta＝20℃).

♦Acceptable customers design cust
