PDRA5020 Series 1.0μH~470μH low resistance, competitive price, high quality elliptical SMD power inductor

All Products

Customer customization (28)

Wurth replace (31)

EPCOS/TDK replace (9)

Murata / coilcraft replace (2)

Drum core inductor (19)

Unshielded SMD Power Inductors (35)

Shielded SMD Power Inductors (101)

Toroid choke (10)

SMD High current inductors (40)

Flat Wire Inductor/Common Mode Choke (31)

Digital amplifier inductors (13)

SMD common mode choke (13)

Current transformer (3)

ET/UU/EE Filters (11)

Axial Inductor/Air coil (20)

Toroid Common mode choke (20)

EE Type High-frequency transformer (18)

EEL Type High-frequency transformer (7)

EI Type High-frequency transformer (8)

EPC Type High-frequency transformer (8)

EF Type High-frequency transformer (7)

EFD Type High-frequency transformer (11)

ER Type High-frequency transformer (14)

ETD Type High-frequency transformer (7)

ERL Type High-frequency transformer (5)

EP Type High-frequency transformer (7)

POT Type High-frequency transformer (5)

PQ Type High-frequency transformer (19)

RM Type High-frequency transformer (9)

Led Transformer Inductors (13)

EQ/ATQ/CQ Type High-frequency transformer (4)

Certification

I'm Online Chat Now

PDRA5020 Series 1.0μH~470μH low resistance, competitive price, high quality elliptical SMD power inductor

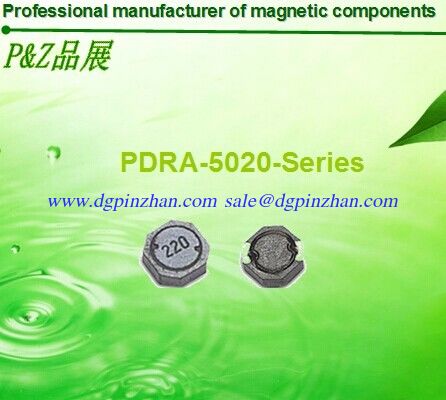

Large Image : PDRA5020 Series 1.0μH~470μH low resistance, competitive price, high quality elliptical SMD power inductor

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	P&Z
Certification:	ISO9001:2015
Model Number:	PDRA5020 Series

Payment & Shipping Terms:

Minimum Order Quantity:	1Reel
Price:	To be confirmed
Packaging Details:	Reel+Carton
Delivery Time:	around 3-4 Weeks
Payment Terms:	T / T in advance
Supply Ability:	1000K

Contact Now

Detailed Product Description

PDRA5020 Series 1.0μH~470μH low resistance, competitive price, high quality elliptical SMD power inductor

PDRA5020 Series SMD Power Inductors

Features:

Inductance Range: 0.47μH~470μH

Temperature Range:－40℃～＋125℃

★Quantity / Reel: 2500pcs

★Small products, Octagonal 5.0mm, Height 1.9mm Type.

★The use of carrier tape package for SMT reflow soldering process

★Widely use in DC-DC converter/LCD TV/Notebook/PDA/MP3 & MP4 player/Digital camera/DVD etc.

★Design to customer requirement.

Electrical Characteristics:

P&Z Part Number	Test Condition	Inductance (μH)	Tolerance (%)	D.C.R(mΩ) Max.	Rated Current(A)
PDRA5020-R47N	100KHz/0.3V	0.47	±30	12	4.00
PDRA5020-1R2M	100KHz/0.3V	1.2	±20	44	2.15
PDRA5020-2R0M	100KHz/0.3V	2.0	±20	46	1.90
PDRA5020-2R2M	100KHz/0.3V	2.2	±20	59	1.63
PDRA5020-3R3M	100KHz/0.3V	3.3	±20	62	1.50
PDRA5020-3R5M	100KHz/0.3V	3.5	±20	73	1.34
PDRA5020-4R7M	100KHz/0.3V	4.7	±20	87	1.14
PDRA5020-6R8M	100KHz/0.3V	6.8	±20	105	0.95
PDRA5020-8R2M	100KHz/0.3V	8.2	±20	139	0.90
PDRA5020-100M	1KHz/0.3V	10	±20	150	0.76
PDRA5020-150M	1KHz/0.3V	15	±20	210	0.63
PDRA5020-220M	1KHz/0.3V	22	±20	275	0.56
PDRA5020-330M	1KHz/0.3V	33	±20	455	0.44
PDRA5020-470M	1KHz/0.3V	47	±20	730	0.35
PDRA5020-680M	1KHz/0.3V	68	±20	935	0.30
PDRA5020-101M	1KHz/0.3V	100	±20	1500	0.23
PDRA5020-121M	1KHz/0.3V	120	±20	1910	0.22
PDRA5020-151M	1KHz/0.3V	150	±20	2680	0.21
PDRA5020-181M	1KHz/0.3V	180	±20	3040	0.20
PDRA5020-221M	1KHz/0.3V	220	±20	3520	0.20
PDRA5020-271M	1KHz/0.3V	270	±20	4380	0.19
PDRA5020-331M	1KHz/0.3V	330	±20	5560	0.19
PDRA5020-471M	1KHz/0.3V	470	±20	7820	0.18

1.Inductance is measured with a LCR meter:HP4284A & 3532-50 or equivalent.
2.D.C .R is measured with a Digital Multimeter TH2512B or equivalent.
3.Rated Current:The rated current is the current at which the inductance decreases by 25% from the initial value or the temperature rise is △T＝40℃ ,whichever is smaller(Ta＝20℃).

♦Acceptable customers design cust
