PDRH105R Series Nickel core material Square High quality competitive shielded SMD Power Inductors

All Products

Customer customization (28)

Wurth replace (31)

EPCOS/TDK replace (9)

Murata / coilcraft replace (2)

Drum core inductor (19)

Unshielded SMD Power Inductors (35)

Shielded SMD Power Inductors (101)

Toroid choke (10)

SMD High current inductors (40)

Flat Wire Inductor/Common Mode Choke (31)

Digital amplifier inductors (13)

SMD common mode choke (13)

Current transformer (3)

ET/UU/EE Filters (11)

Axial Inductor/Air coil (20)

Toroid Common mode choke (20)

EE Type High-frequency transformer (18)

EEL Type High-frequency transformer (7)

EI Type High-frequency transformer (8)

EPC Type High-frequency transformer (8)

EF Type High-frequency transformer (7)

EFD Type High-frequency transformer (11)

ER Type High-frequency transformer (14)

ETD Type High-frequency transformer (7)

ERL Type High-frequency transformer (5)

EP Type High-frequency transformer (7)

POT Type High-frequency transformer (5)

PQ Type High-frequency transformer (19)

RM Type High-frequency transformer (9)

Led Transformer Inductors (13)

EQ/ATQ/CQ Type High-frequency transformer (4)

Certification

I'm Online Chat Now

PDRH105R Series Nickel core material Square High quality competitive shielded SMD Power Inductors

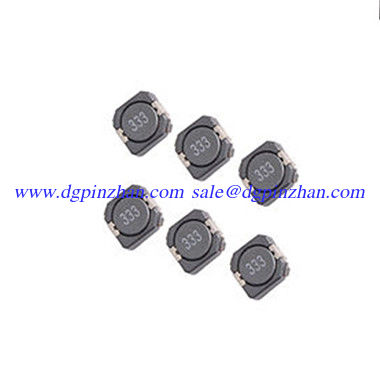

Large Image : PDRH105R Series Nickel core material Square High quality competitive shielded SMD Power Inductors

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	P&Z
Certification:	ISO9001:2015
Model Number:	PDRH105R Series

Payment & Shipping Terms:

Minimum Order Quantity:	1Reel
Price:	To be confirmed
Packaging Details:	Reel+Carton
Delivery Time:	around 3-4 Weeks
Payment Terms:	T / T in advance
Supply Ability:	1000k

Contact Now

Detailed Product Description

PDRH105R Series Nickel core material Square High quality competitive shielded SMD Power Inductors

PDRH105R Series SMD Power Inductors

Features:

Inductance Range: 10μH~1000μH

Temperature Range:－40℃～＋125℃

★Quantity / Reel: 750pcs

★High current & low DCR, Quadrate10.7mm Max, Height 5.0mm Max.

★The use of carrier tape package for SMT reflow soldering process

★Widely use in DC-DC converter/LCD TV/Notebook/PDA/MP3 & MP4 player/Digital camera/DVD etc.

★Design to customer requirement.

Electrical Characteristics:

P&Z Part Number	Test Condition	Inductance (μH)	Tolerance (%)	D.C.R(mΩ) Max.	Rated Current
P&Z Part Number	Test Condition	Inductance (μH)	Tolerance (%)	D.C.R(mΩ) Max.	Isat(A)	Irms(A)
PDRH105R-100M,N	100KHz/1.0V	10	±20,±30	25.8	3.45	4.50
PDRH105R-120M,N	100KHz/1.0V	12	±20,±30	32.0	3.40	3.80
PDRH105R-150M,N	100KHz/1.0V	15	±20,±30	40.0	2.83	3.70
PDRH105R-180M,N	100KHz/1.0V	18	±20,±30	46.0	2.62	3.10
PDRH105R-220M,N	100KHz/1.0V	22	±20,±30	58.5	2.44	3.00
PDRH105R-270M,N	100KHz/1.0V	27	±20,±30	65.4	2.24	2.60
PDRH105R-330M,N	100KHz/1.0V	33	±20,±30	81.4	1.88	2.50
PDRH105R-390M,N	100KHz/1.0V	39	±20,±30	103.1	1.70	2.25
PDRH105R-470M,N	100KHz/1.0V	47	±20,±30	122.1	1.56	2.20
PDRH105R-560M,N	100KHz/1.0V	56	±20,±30	144.8	1.39	1.90
PDRH105R-680M,N	100KHz/1.0V	68	±20,±30	193.0	1.36	1.60
PDRH105R-820M,N	100KHz/1.0V	82	±20,±30	219.4	1.20	1.50
PDRH105R-101M,N	100KHz/1.0V	100	±20,±30	247.0	1.09	1.35
PDRH105R-121M,N	100KHz/1.0V	120	±20,±30	298.4	1.00	1.20
PDRH105R-151M,N	100KHz/1.0V	150	±20,±30	355.1	0.91	1.15
PDRH105R-181M,N	100KHz/1.0V	180	±20,±30	394.3	0.84	1.10
PDRH105R-221M,N	100KHz/1.0V	220	±20,±30	483.8	0.75	1.00
PDRH105R-271M,N	100KHz/1.0V	270	±20,±30	632.5	0.68	0.80
PDRH105R-331M,N	100KHz/1.0V	330	±20,±30	780.0	0.60	0.75
PDRH105R-391M,N	100KHz/1.0V	390	±20,±30	957.5	0.57	0.70
PDRH105R-471M,N	100KHz/1.0V	470	±20,±30	1220.4	0.50	0.54
PDRH105R-561M,N	100KHz/1.0V	560	±20,±30	1352.4	0.47	0.52
PDRH105R-681M,N	100KHz/1.0V	680	±20,±30	1519.2	0.43	0.51
PDRH105R-821M,N	100KHz/1.0V	820	±20,±30	1694.4	0.39	0.48
PDRH105R-102M,N	100KHz/1.0V	1000	±20,±30	1946.4	0.35	0.42

1.Inductance is measured with a LCR meter:HP4284A & 3532-50 or equivalent.
2.D.C .R is measured with a Digital Multimeter TH2512B or equivalent.
3.Rated Current:The rated current is the current at which the inductance decreases by 25% from the initial value or the temperature rise is △T＝40℃ ,whichever is smaller(Ta＝20℃).

♦Acceptable customers design cust
