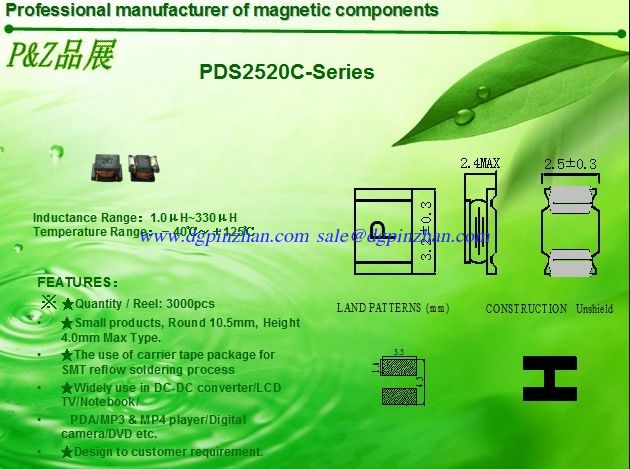

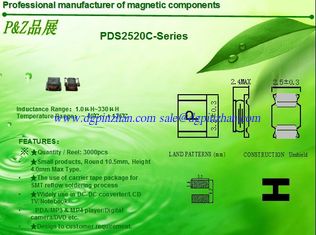

PDS2520C Series 1.0uH~330uH Square Unshielded SMD Power Inductors

PDS2520C Series SMD Power Inductors

Inductance Range: 1.0μH~330μH

Temperature Range:-40℃~+125℃

★Quantity / Reel: 2500pcs

★Small products, Quadrate3.5mm*2.8mm, Height 2.4mm Max.

★The use of carrier tape package for SMT reflow soldering process

★Widely use in DC-DC converter/LCD TV/Notebook/

   PDA/MP3 & MP4 player/Digital camera/DVD etc.

★Design to customer requirement

P&Z Part Number

Test Condition

Inductance  (μH)

Tolerance (%)

D.C.R(Ω) Max.

Rated Current(mA)

PDS2520C-1R0M

1MHz/0.3V

1.0

±20

0.078

1000

PDS2520C-2R2M

1MHz/0.3V

2.2

±20

0.126

790

PDS2520C-4R7M

1MHz/0.3V

4.7

±20

0.195

650

PDS2520C-100K

1MHz/0.3V

10

±10

0.390

450

PDS2520C-1R0M

1MHz/0.3V

1.0

±20

0.117

800

PDS2520C-1R8M

1MHz/0.3V

1.8

±20

0.140

780

PDS2520C-2R2M

1MHz/0.3V

2.2

±20

0.169

600

PDS2520C-3R3M

1MHz/0.3V

3.3

±20

0.180

500

PDS2520C-4R7M

1MHz/0.3V

4.7

±20

0.260

450

PDS2520C-100K,M

1MHz/0.3V

10

±10,±20

0.572

300

PDS2520C-220K,M

1MHz/0.3V

22

±10,±20

0.923

250

PDS2520C-470K,M

1MHz/0.3V

47

±10,±20

1.690

170

PDS2520C-101K,M

1MHz/0.3V

100

±10,±20

4.550

100

PDS2520C-221K,M

1MHz/0.3V

220

±10,±20

10.920

70

PDS2520C-331K,M

1MHz/0.3V

330

±10,±20

13.000

60

1.Inductance is measured with a LCR meter:HP4284A & 3532-50 or equivalent.
2.D.C .R is measured with a Digital Multimeter TH2512B or equivalent.
3.Rated Current:The rated current is the current at which the inductance decreases by 25% from the initial value
or the temperature rise is △T=40℃ ,whichever is smaller(Ta=20℃).
