PDRP6035 Series 2.0μH~150μH Elliptical low resistance high quality competitive price shielded SMD power inductor
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description

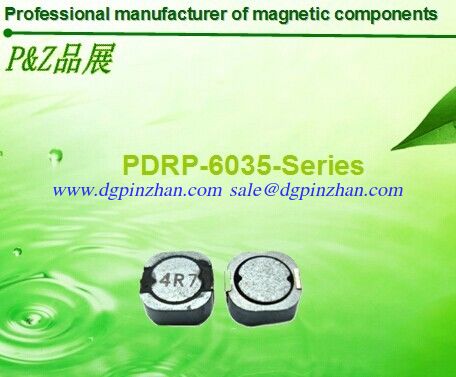

PDRP6035 Series SMD Power Inductors
Inductance Range: 2.0μH~150μH
Temperature Range:－40℃～＋125℃
★Quantity / Reel: 1500pcs
★Small products, Round 6.5 mm, Height 3.5 Type
★The use of carrier tape package for SMT reflow soldering process
★Widely use in DC-DC converter/LCD TV/Notebook/
PDA/MP3 & MP4 player/Digital camera/DVD etc.
★Design to customer requirement
|
P&Z Part Number |
Test Condition |
Inductance (μH) |
Tolerance (%) |
D.C.R(Ω) Max. |
Rated Current(A) |
|---|---|---|---|---|---|
|
PDRP6035-2R0M,N |
100KHz/0.1V |
2.0 |
±20,±30 |
20m |
3.00 |
|
PDRP6035-2R7M,N |
100KHz/0.1V |
2.7 |
±20,±30 |
25m |
2.69 |
|
PDRP6035-3R3M,N |
100KHz/0.1V |
3.3 |
±20,±30 |
30m |
2.57 |
|
PDRP6035-4R7M,N |
100KHz/0.1V |
4.7 |
±20,±30 |
35m |
2.08 |
|
PDRP6035-6R2M,N |
100KHz/0.1V |
6.2 |
±20,±30 |
40m |
1.84 |
|
PDRP6035-8R2M,N |
100KHz/0.1V |
8.2 |
±20,±30 |
55m |
1.54 |
|
PDRP6035-100M |
100KHz/0.1V |
10 |
±20 |
65m |
1.49 |
|
PDRP6035-120M |
100KHz/0.1V |
12 |
±20 |
72m |
1.28 |
|
PDRP6035-150M |
100KHz/0.1V |
15 |
±20 |
78m |
1.10 |
|
PDRP6035-180M |
100KHz/0.1V |
18 |
±20 |
98m |
1.05 |
|
PDRP6035-220M |
100KHz/0.1V |
22 |
±20 |
0.115 |
0.97 |
|
PDRP6035-270M |
100KHz/0.1V |
27 |
±20 |
0.150 |
0.82 |
|
PDRP6035-330M |
100KHz/0.1V |
33 |
±20 |
0.175 |
0.76 |
|
PDRP6035-390M |
100KHz/0.1V |
39 |
±20 |
0.200 |
0.70 |
|
PDRP6035-470M |
100KHz/0.1V |
47 |
±20 |
0.240 |
0.68 |
|
PDRP6035-560M |
100KHz/0.1V |
56 |
±20 |
0.300 |
0.60 |
|
PDRP6035-680M |
100KHz/0.1V |
68 |
±20 |
0.330 |
0.56 |
|
PDRP6035-820M |
100KHz/0.1V |
82 |
±20 |
0.420 |
0.47 |
|
PDRP6035-101M |
100KHz/0.1V |
100 |
±20 |
0.470 |
0.45 |
|
PDRP6035-151M |
100KHz/0.1V |
150 |
±20 |
0.650 |
0.37 |
1.Inductance is measured with a LCR meter:HP4284A & 3532-50 or equivalent.
2.D.C .R is measured with a Digital Multimeter TH2512B or equivalent.
3.Rated Current:The rated current is the current at which the inductance decreases by 25% from the initial value or the temperature rise is △T＝40℃ ,whichever is smaller(Ta＝20℃).
