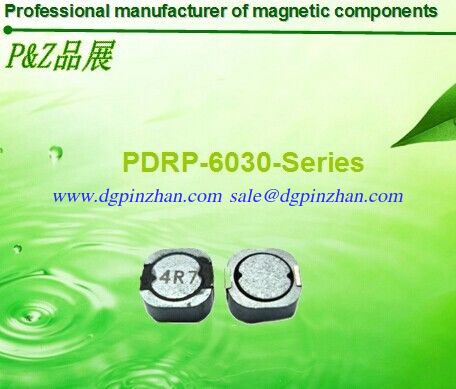

PDRP6030 Series SMD Power Inductors
Inductance Range: 1.0μH~150μH
Temperature Range:－40℃～＋125℃
★Quantity / Reel: 2000pcs
★Small products, Round 6.5 mm, Height 3.0 Type
★The use of carrier tape package for SMT reflow soldering process
★Widely use in DC-DC converter/LCD TV/Notebook/
PDA/MP3 & MP4 player/Digital camera/DVD etc.
★Design to customer requirement
|
P&Z Part Number |
Test Condition |
Inductance (μH) |
Tolerance (%) |
D.C.R(Ω) Max. |
Rated Current(A) |
|---|---|---|---|---|---|
|
PDRP6030-1R0N |
100KHz/0.1V |
1.0 |
±30 |
17m |
3.59 |
|
PDRP6030-1R5N |
100KHz/0.1V |
1.5 |
±30 |
21m |
2.93 |
|
PDRP6030-2R2M,N |
100KHz/0.1V |
2.2 |
±20,±30 |
24m |
2.42 |
|
PDRP6030-3R6M,N |
100KHz/0.1V |
3.6 |
±20,±30 |
33m |
1.89 |
|
PDRP6030-4R7M,N |
100KHz/0.1V |
4.7 |
±20,±30 |
42m |
1.66 |
|
PDRP6030-6R2M,N |
100KHz/0.1V |
6.2 |
±20,±30 |
50m |
1.45 |
|
PDRP6030-100M,N |
100KHz/0.1V |
10 |
±20,±30 |
65m |
1.14 |
|
PDRP6030-120M,N |
100KHz/0.1V |
12 |
±20,±30 |
72m |
1.04 |
|
PDRP6030-150M,N |
100KHz/0.1V |
15 |
±20,±30 |
96m |
0.93 |
|
PDRP6030-180M,N |
100KHz/0.1V |
18 |
±20,±30 |
0.103 |
0.85 |
|
PDRP6030-220M,N |
100KHz/0.1V |
22 |
±20,±30 |
0.132 |
0.77 |
|
PDRP6030-270M,N |
100KHz/0.1V |
27 |
±20,±30 |
0.160 |
0.70 |
|
PDRP6030-330M,N |
100KHz/0.1V |
33 |
±20,±30 |
0.180 |
0.63 |
|
PDRP6030-390M,N |
100KHz/0.1V |
39 |
±20,±30 |
0.200 |
0.58 |
|
PDRP6030-470M,N |
100KHz/0.1V |
47 |
±20,±30 |
0.250 |
0.53 |
|
PDRP6030-560M,N |
100KHz/0.1V |
56 |
±20,±30 |
0.300 |
0.48 |
|
PDRP6030-680M,N |
100KHz/0.1V |
68 |
±20,±30 |
0.360 |
0.44 |
|
PDRP6030-820M,N |
100KHz/0.1V |
82 |
±20,±30 |
0.450 |
0.40 |
|
PDRP6030-101M,N |
100KHz/0.1V |
100 |
±20,±30 |
0.560 |
0.36 |
|
PDRP6030-151M,N |
100KHz/0.1V |
150 |
±20,±30 |
0.750 |
0.31 |
1.Inductance is measured with a LCR meter:HP4284A & 3532-50 or equivalent.
2.D.C .R is measured with a Digital Multimeter TH2512B or equivalent.
3.Rated Current:The rated current is the current at which the inductance decreases by 25% from the initial value or the temperature rise is △T＝40℃ ,whichever is smaller(Ta＝20℃).
