PDRP6025 Series 1.0μH~100μH Elliptical low resistance high quality competitive price shielded SMD power inductor
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description

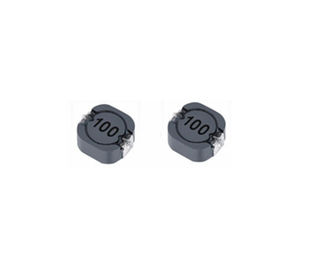

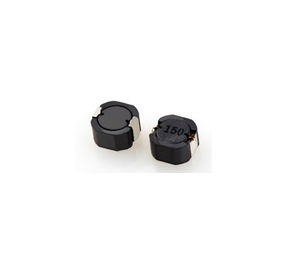

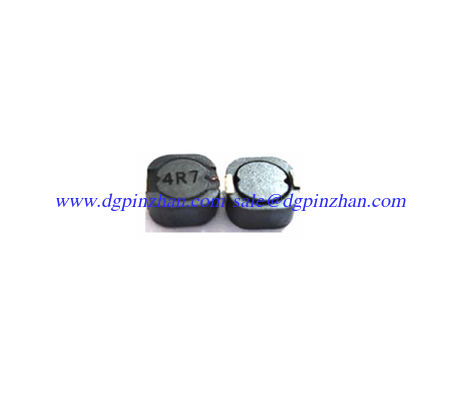

PDRP6025 Series SMD Power Inductors
Inductance Range: 1.0μH~100μH
Temperature Range:－40℃～＋125℃
★Quantity / Reel: 2000pcs
★Small products, Round 6.5 mm, Height 2.5 Type
★The use of carrier tape package for SMT reflow soldering process
★Widely use in DC-DC converter/LCD TV/Notebook/
PDA/MP3 & MP4 player/Digital camera/DVD etc.
★Design to customer requirement
|
P&Z Part Number |
Test Condition |
Inductance (μH) |
Tolerance (%) |
D.C.R(Ω) Max. |
Rated Current(A) |
|---|---|---|---|---|---|
|
PDRP6025-1R0N |
100KHz/0.1V |
1.0 |
±30 |
18m |
3.48 |
|
PDRP6025-1R5N |
100KHz/0.1V |
1.5 |
±30 |
24m |
2.83 |
|
PDRP6025-2R0N |
100KHz/0.1V |
2.0 |
±30 |
32m |
2.44 |
|
PDRP6025-3R3N |
100KHz/0.1V |
3.3 |
±30 |
45m |
1.89 |
|
PDRP6025-4R3M,N |
100KHz/0.1V |
4.3 |
±20,±30 |
55m |
1.65 |
|
PDRP6025-6R2M,N |
100KHz/0.1V |
6.2 |
±20,±30 |
65m |
1.37 |
|
PDRP6025-100M,N |
100KHz/0.1V |
10 |
±20,±30 |
95m |
1.07 |
|
PDRP6025-120M,N |
100KHz/0.1V |
12 |
±20,±30 |
0.12 |
0.97 |
|
PDRP6025-150M,N |
100KHz/0.1V |
15 |
±20,±30 |
0.15 |
0.87 |
|
PDRP6025-180M,N |
100KHz/0.1V |
18 |
±20,±30 |
0.18 |
0.79 |
|
PDRP6025-220M,N |
100KHz/0.1V |
22 |
±20,±30 |
0.21 |
0.71 |
|
PDRP6025-270M,N |
100KHz/0.1V |
27 |
±20,±30 |
0.24 |
0.64 |
|
PDRP6025-330M,N |
100KHz/0.1V |
33 |
±20,±30 |
0.28 |
0.58 |
|
PDRP6025-390M,N |
100KHz/0.1V |
39 |
±20,±30 |
0.33 |
0.53 |
|
PDRP6025-470M,N |
100KHz/0.1V |
47 |
±20,±30 |
0.39 |
0.48 |
|
PDRP6025-560M,N |
100KHz/0.1V |
56 |
±20,±30 |
0.45 |
0.44 |
|
PDRP6025-680M,N |
100KHz/0.1V |
68 |
±20,±30 |
0.56 |
0.40 |
|
PDRP6025-820M,N |
100KHz/0.1V |
82 |
±20,±30 |
0.62 |
0.36 |
|
PDRP6025-101M,N |
100KHz/0.1V |
100 |
±20,±30 |
0.80 |
0.33 |
1.Inductance is measured with a LCR meter:HP4284A & 3532-50 or equivalent.
2.D.C .R is measured with a Digital Multimeter TH2512B or equivalent.
3.ated Current:The rated current is the current at which the inductance decreases by 25% from the initial value or the temperature rise is △T＝40℃ ,whichever is smaller(Ta＝20℃).
