PDC5618 Series SMD Power Inductors

PDC5618 Series SMD Power Inductors

China PDC5618 Series SMD Power Inductors supplier
PDC5618 Series SMD Power Inductors supplier PDC5618 Series SMD Power Inductors supplier PDC5618 Series SMD Power Inductors supplier

Large Image :  PDC5618 Series SMD Power Inductors

Product Details:

Place of Origin: Dongguan, China
Brand Name: P&Z
Certification: ISO9001:2015
Model Number: PDC5618 Series

Payment & Shipping Terms:

Minimum Order Quantity: 1Reel
Price: To be confirmed
Packaging Details: Reel+Carton
Delivery Time: around 3-4 Weeks
Payment Terms: T / T in advance
Supply Ability: 1000K
Detailed Product Description

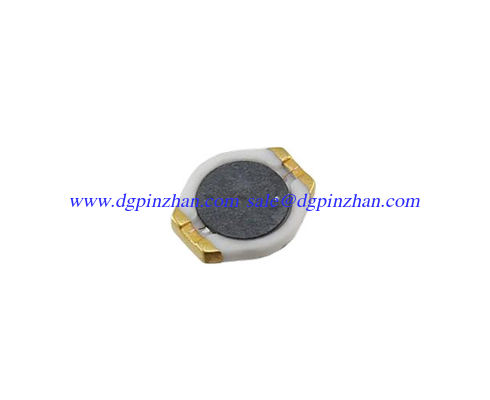

 PDC5618 Series SMD Power Inductors

PDC5618 Series SMD Power Inductors

Inductance Range: 1.0μH~1000μH

Temperature Range:-40℃~+125℃

★Quantity / Reel: 3000pcs

★Small products, Quadrate 5.6 1mm Max, Height 6.45 mm Max.

★The use of carrier tape package for SMT reflow soldering process

★Widely use in DC-DC converter/LCD TV/Notebook/

PDA/MP3 & MP4 player/Digital camera/DVD etc.

★Design to customer requirement

P&Z Part Number

Test Condition

Inductance  (μH)

Tolerance (%)

D.C.R(Ω) Max.

Rated Current

Isat(A)

Irms(A)

PDC5618-1R0M

100KHz/0.1V

1.0

±20

0.04

2.50

2.30

PDC5618-1R5M

100KHz/0.1V

1.5

±20

0.06

2.20

2.10

PDC5618-2R2M

100KHz/0.1V

2.2

±20

0.07

1.80

1.70

PDC5618-3R3M

100KHz/0.1V

3.3

±20

0.10

1.40

1.30

PDC5618-4R7M

100KHz/0.1V

4.7

±20

0.12

1.20

1.10

PDC5618-6R8M

100KHz/0.1V

6.8

±20

0.19

1.10

1.00

PDC5618-100M

100KHz/0.1V

10

±20

0.30

1.00

0.90

PDC5618-150M

100KHz/0.1V

15

±20

0.40

0.80

0.70

PDC5618-220M

100KHz/0.1V

22

±20

0.54

0.60

0.50

PDC5618-330M

100KHz/0.1V

33

±20

0.74

0.50

0.45

PDC5618-470M

100KHz/0.1V

47

±20

1.10

0.45

0.40

PDC5618-680M

100KHz/0.1V

68

±20

1.60

0.35

0.35

PDC5618-101M

100KHz/0.1V

100

±20

2.30

0.30

0.30

PDC5618-151M

100KHz/0.1V

150

±20

3.20

0.25

0.25

PDC5618-221M

100KHz/0.1V

220

±20

5.70

0.20

0.18

PDC5618-331M

100KHz/0.1V

330

±20

8.20

0.16

0.16

PDC5618-471M

100KHz/0.1V

470

±20

10.80

0.14

0.12

PDC5618-681M

100KHz/0.1V

680

±20

17.20

0.12

0.10

PDC5618-102M

100KHz/0.1V

1000

±20

22.60

0.08

0.08

1.Inductance is measured with a LCR meter:HP4284A & 3532-50 or equivalent.
2.D.C .R is measured with a Digital Multimeter TH2512B or equivalent.
3.Rated Current:The rated current is the current at which the inductance decreases by 25% from the initial value
or the temperature rise is △T=40℃ ,whichever is smaller(Ta=20℃).
