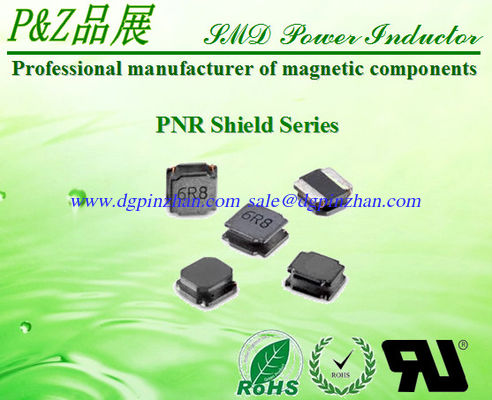

PNR6020-Series 0.8~22uH Magnetic plastic SMD Power Inductors Square Size

PNR6020-Series SMD Power Inductors

Inductance Range: 0.8μH~22μH

Temperature Range:－40℃～＋125℃

★Quantity / Reel: 2500pcs

★Small products, Quadrate6.2mm Max, Height 2.0 mm Max.

★The use of carrier tape package for SMT reflow soldering process

★Widely use in DC-DC converter/LCD TV/Notebook/

PDA/MP3 & MP4 player/Digital camera/DVD etc.

★Design to customer requirement

P&Z Part Number	Test Condition	Inductance (μH)	Tolerance (%)	D.C.R(Ω) (±30%)	Rated Current
P&Z Part Number	Test Condition	Inductance (μH)	Tolerance (%)	D.C.R(Ω) (±30%)	Isat(A)	Irms(A)
PNR6020-0R8N	100KHz/0.3V	0.8	±30	0.020	5.50	3.80
PNR6020-1R5N	100KHz/0.3V	1.5	±30	0.026	4.00	3.20
PNR6020-2R2N	100KHz/0.3V	2.2	±30	0.034	3.20	2.70
PNR6020-3R3N	100KHz/0.3V	3.3	±30	0.040	2.80	2.60
PNR6020-4R7N	100KHz/0.3V	4.7	±30	0.058	2.40	2.00
PNR6020-6R8N	100KHz/0.3V	6.8	±30	0.085	2.00	1.80
PNR6020-100M	100KHz/0.3V	10	±20	0.125	1.70	1.40
PNR6020-220M	100KHz/0.3V	22	±20	0.290	1.05	0.95

1.Inductance is measured with a LCR meter:HP4284A & 3532-50 or equivalent.
2.D.C .R is measured with a Digital Multimeter TH2512B or equivalent.
3.Rated Current:The rated current is the current at which the inductance decreases by 25% from the initial value or the temperature rise is △T＝40℃ ,whichever is smaller(Ta＝20℃).
