RC Type High Current Chokes
PZRL0205 Series RC Type High Current Chokes

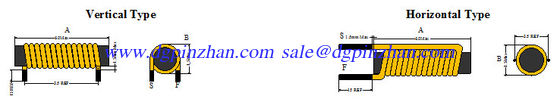

Dimensions:(mm):
Features:
.High saturation current.
.General purpose inductors
.Low cost design,Tin plated leads.
.Varnish coated or UL tube.
Applications:
.Power supplies.
.Power amplifiers.
.Noise filter for Switching regulators.
.SCR and Triac circuits.
★Design to customer requirement.
Electrical Characteristics:
| Part No. | L(uH) 1KHZ/0.25V | DCR(Ω)Max | Rated Current (A) Max | SRF (MHZ)Min | Wire Size(mm) | Turns (Ts)REF |
| PZRL0205-1R0K | 1.0 | 0.04 | 0.56 | 200 | 0.30 | 11.5 |
| PZRL0205-1R2K | 1.2 | 0.04 | 0.56 | 180 | 0.30 | 12.5 |
Characteristics:
Rated Current : It is either the inductance is 20% lower.
is than its initial value in DC. saturation characteristics
or temperature rise becomes △T=25℃(Ta=20)
Whichever lower.
.Operating temperature : -20℃ to 80℃.
Test equipment and test steup:
L: LCR meter, @1kHz/0.25V, 25℃.
DCR: Milli-ohm meter.
.Electrical specifications at 25℃.
♦Acceptable customers design cust
