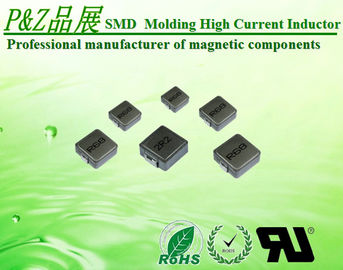

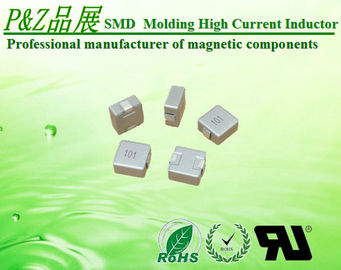

PSM1350 Series 0.36~47uH Iron alloy Molding SMD High Current Inductors Chokes Square Size
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Shape: | Square | Size: | 14*13*5.0 |
|---|---|---|---|
| Materia: | Iron Alloy | Packing Quantity: | 500PCS/Reel |

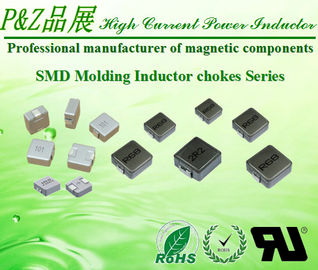

PSM1350 Series SMD High Current Inductors
Dimensions (mm):12.8 x 13.8 x 5.0
Inductance Range(uH):0.36 ~ 47.0
DCR Range(mΩ):0.74 ~ 130
Heat RatingCurrent DC Idc (A):3.0 ~ 42.0
Saturation Current DC Isat (A):5.0 ~ 50.0
Features:
High performance (Isat) realized by metal dust core.
Low profile:Thickness max.5.0 mm
Low loss realized with low DCR Capable of corresponding high frequency (1MHz)
Design to customer requirement
Application:
DC/DC converter for CPU in Notebook PC
Thin type on-board power supply module for exchangerVRM for server.
|
P&Z Part Number |
L0 @ (0A) Inductance ( μH ) ±20% |
DCR(mΩ) |
Heat Rating Current DC Amps. Idc ( A ) |
Saturation Current DC Amps. Isat ( A ) |
|
|
Typical |
Maximum |
Typical |
Typical |
||
|
PSM1350-R36M |
0.36 |
0.74 |
0.85 |
42 |
50 |
|
PSM1350-R50M |
0.50 |
1.00 |
1.15 |
38 |
48 |
|
PSM1350-R68M |
0.68 |
1.35 |
1.55 |
33 |
46 |
|
PSM1350-R82M |
0.82 |
1.45 |
1.67 |
30 |
39 |
|
PSM1350-1R0M |
1.0 |
1.9 |
2.2 |
26 |
35 |
|
PSM1350-1R5M |
1.5 |
2.8 |
3.2 |
23 |
33 |
|
PSM1350-1R8M |
1.8 |
2.8 |
3.2 |
23 |
27 |
|
PSM1350-2R2M |
2.2 |
4.0 |
5.0 |
15 |
24 |
|
PSM1350-3R3M |
3.3 |
5.9 |
7.0 |
14 |
22 |
|
PSM1350-100M |
10 |
19 |
22 |
9 |
12 |
|
PSM1350-220M |
22 |
51 |
58 |
4.5 |
6.5 |
|
PSM1350-270M |
27 |
58 |
66 |
4.0 |
6.3 |
|
PSM1350-330M |
33 |
75 |
84 |
3.5 |
6.0 |
|
PSM1350-470M |
47 |
116 |
130 |
3.0 |
5.0 |
Packaging Information:
