PSM1335 Series 0.22~3.3uH Iron alloy Molding SMD High Current Inductors Chokes Square Size

China PSM1335 Series 0.22~3.3uH Iron alloy Molding SMD High Current Inductors Chokes Square Size supplier
PSM1335 Series 0.22~3.3uH Iron alloy Molding SMD High Current Inductors Chokes Square Size supplier PSM1335 Series 0.22~3.3uH Iron alloy Molding SMD High Current Inductors Chokes Square Size supplier PSM1335 Series 0.22~3.3uH Iron alloy Molding SMD High Current Inductors Chokes Square Size supplier PSM1335 Series 0.22~3.3uH Iron alloy Molding SMD High Current Inductors Chokes Square Size supplier

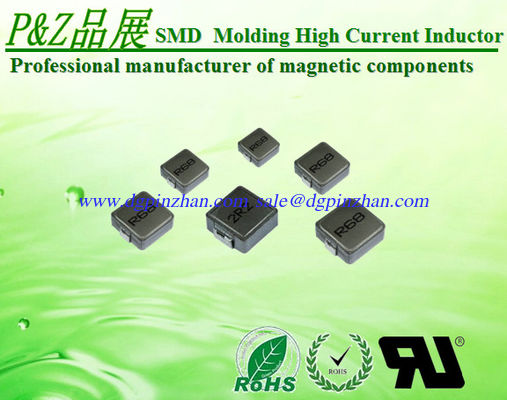

Large Image :  PSM1335 Series 0.22~3.3uH Iron alloy Molding SMD High Current Inductors Chokes Square Size

Product Details:

Place of Origin: Dongguan, China
Brand Name: P&Z
Certification: ISO9001:2015
Model Number: PSM1335 Series

Payment & Shipping Terms:

Minimum Order Quantity: 1Reel
Price: To be confirmed
Packaging Details: Reel+Carton
Delivery Time: around 3-4 Weeks
Payment Terms: T / T in advance
Supply Ability: 1KK
Contact Now
Detailed Product Description

PSM1335 Series 0.22~3.3uH Iron alloy Molding SMD High Current Inductors Chokes Square Size

PSM1335 Series SMD High Current Inductors

Dimensions (mm):12.8 x 13.8 x 3.5

Inductance Range(uH):0.22 ~ 33.0

DCR Range(mΩ):1.0 ~ 9.5

Heat RatingCurrent DC Idc (A):13.0 ~ 38.0

Saturation Current DC Isat (A):16.0 ~ 55.0

Features:
High performance (Isat) realized by metal dust core.
Low profile:Thickness max.3.5 mm
Low loss realized with low DCR Capable of corresponding high frequency (1MHz)
Design to customer requirement
Application:
DC/DC converter for CPU in Notebook PC
Thin type on-board power supply module for exchangerVRM for server.

P&Z Part Number

L0 @ (0A)

Inductance

( μH ) ±20%

DCR(mΩ)

Heat Rating Current

DC Amps. Idc ( A )

Saturation Current

DC Amps. Isat ( A )

Typical

Maximum

Typical

Typical

PSM1335-R22M

0.22

1.00

1.20

38

55

PSM1335-R56M

0.56

1.70

2.00

29

44

PSM1335-R68M

0.68

2.10

2.40

28

42

PSM1335-R82M

0.82

2.50

2.90

25

37

PSM1335-1R0M

1.00

3.00

3.40

24

34

PSM1335-1R2M

1.20

3.30

3.80

20

27

PSM1335-1R5M

1.50

4.10

4.70

18

26

PSM1335-2R2M

2.20

6.00

6.90

14

20

PSM1335-3R3M

3.30

8.30

9.50

13

16
