PSM0730 Series 0.1~22uH Iron alloy Molding SMD High Current Inductors Chokes Square Size
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description

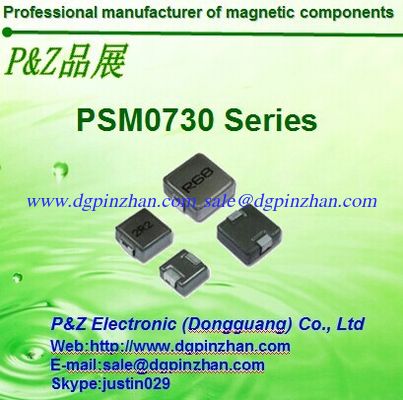

PSM0730 Series SMD High Current Inductors
Dimensions (mm):7.0 x7.5x3.0
Inductance Range(uH):0.1~2.2
DCR Range(mΩ):1.5~135
Heat RatingCurrent DC Idc (A):2.9~ 32.5
Saturation Current DC Isat (A):3.5 ~60.0
Features:
High performance (Isat) realized by metal dust core.
Low profile:Thickness max. 3.0 mm
Low loss realized with low DCR Capable of corresponding high frequency (1MHz)
Design to customer requirement
Application:
DC/DC converter for CPU in Notebook PC
Thin type on-board power supply module for exchangerVRM for server.
|
P&Z Part Number |
L0 @ (0A) Inductance ( μH ) ±20% |
DCR(mΩ) |
Heat Rating Current DC Amps. Idc ( A ) |
Saturation Current DC Amps. Isat ( A ) |
|
|
Typical |
Maximum |
Typical |
Typical |
||
|
PSM0730-R10M |
0.10 |
1.5 |
1.7 |
32.5 |
60.0 |
|
PSM0730-R22M |
0.22 |
2.5 |
2.8 |
23.0 |
40.0 |
|
PSM0730-R33M |
0.33 |
3.5 |
3.9 |
20.0 |
30.0 |
|
PSM0730-R47M |
0.47 |
4.0 |
4.2 |
17.5 |
26.0 |
|
PSM0730-R56M |
0.56 |
4.7 |
5.0 |
16.5 |
25.5 |
|
PSM0730-R68M |
0.68 |
5.0 |
5.5 |
15.5 |
25.0 |
|
PSM0730-R82M |
0.82 |
6.7 |
8.0 |
13.0 |
24.0 |
|
PSM0730-1R0M |
1.0 |
9.0 |
10.0 |
11.0 |
22.0 |
|
PSM0730-1R5M |
1.5 |
14.0 |
15.0 |
9.0 |
18.0 |
|
PSM0730-2R2M |
2.2 |
18.0 |
20.0 |
8.0 |
14.0 |
|
PSM0730-3R3M |
3.3 |
28.0 |
30.0 |
6.0 |
13.5 |
|
PSM0730-4R7M |
4.7 |
37.0 |
40.0 |
5.5 |
10.0 |
|
PSM0730-6R8M |
6.8 |
54.0 |
60.0 |
4.5 |
8.0 |
|
PSM0730-8R2M |
8.2 |
54.0 |
60.0 |
4.5 |
6.0 |
|
PSM0730-100M |
10 |
62.0 |
68.0 |
4.0 |
5.5 |
|
PSM0730-220M |
22 |
129.0 |
135.0 |
2.9 |
3.5 |
