PSM0530 Series 0.1~6.8uH Iron alloy Molding SMD High Current Inductors Chokes Square Size

China PSM0530 Series 0.1~6.8uH Iron alloy Molding SMD High Current Inductors Chokes Square Size supplier
PSM0530 Series 0.1~6.8uH Iron alloy Molding SMD High Current Inductors Chokes Square Size supplier PSM0530 Series 0.1~6.8uH Iron alloy Molding SMD High Current Inductors Chokes Square Size supplier PSM0530 Series 0.1~6.8uH Iron alloy Molding SMD High Current Inductors Chokes Square Size supplier PSM0530 Series 0.1~6.8uH Iron alloy Molding SMD High Current Inductors Chokes Square Size supplier

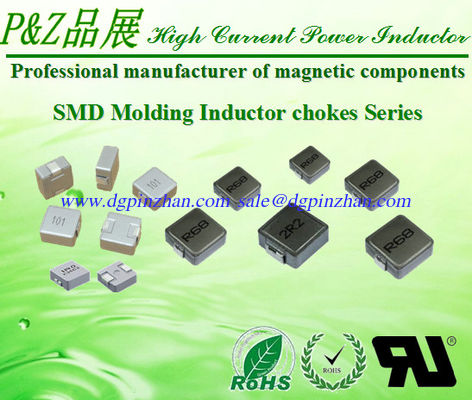

Large Image :  PSM0530 Series 0.1~6.8uH Iron alloy Molding SMD High Current Inductors Chokes Square Size

Product Details:

Place of Origin: Dongguan, China
Brand Name: P&Z
Certification: ISO9001:2015
Model Number: PSM0530 Series

Payment & Shipping Terms:

Minimum Order Quantity: 1Reel
Price: To be confirmed
Packaging Details: Reel+Carton
Delivery Time: around 3-4 Weeks
Payment Terms: T / T in advance
Supply Ability: 1KK
Contact Now
Detailed Product Description

PSM0530 Series 0.1~6.8uH Iron alloy Molding SMD High Current Inductors Chokes Square Size

PSM0530 Series 0.1~6.8uH Iron alloy Molding SMD High Current Inductors Chokes Square Size

PSM0530 Series SMD High Current Inductors

Dimensions (mm):5.2 x5.5x 3.0

Inductance Range(uH):0.1~6.8

DCR Range(mΩ):2.0~100

Heat RatingCurrent DC Idc (A):3.0 ~ 32.0

Saturation Current DC Isat (A):3.5 ~34.0

Features:
High performance (Isat) realized by metal dust core.
Low profile:Thickness max. 3.0mm
Low loss realized with low DCR Capable of corresponding high frequency (3MHz)
Design to customer requirement
Application:
DC/DC converter for CPU in Notebook PC
Thin type on-board power supply module for exchangerVRM for server.

P&Z Part Number

L0 @ (0A)

Inductance

( μH ) ±20%

DCR(mΩ)

Heat Rating Current

DC Amps. Idc ( A )

Saturation Current

DC Amps. Isat ( A )

Typical

Maximum

Typical

Typical

 PSM0530-R10M

 0.10

 2.0

 2.5

 32.0

 34.0

 PSM0530-R12M

 0.12

 2.2

 2.6

 30.0

 32.0

 PSM0530-R20M

 0.20

 3.5

 3.9

 21.0

 14.5

 PSM0530-R35M

 0.35

 4.5

 5.0

 16.5

 9.0

 PSM0530-R47M

 0.47

 7.4

 8.5

 13.0

 12.0

 PSM0530-R68M

 0.68

 11.0

 12.0

 8.5

 14.0

 PSM0530-1R0M

 1.0

 13.0

 14.0

 7.0

 11.0

 PSM0530-1R2M

 1.2

 15.0

 16.0

 6.5

 11.0

 PSM0530-1R5M

 1.5

 20.0

 25.0

 6.0

 10.0

 PSM0530-2R2M

 2.2

 29.0

 35.0

 5.5

 9.0

 PSM0530-3R3M

 3.3

 32.0

 38.0

 5.0

 7.0

 PSM0530-4R7M

 4.7

 50.0

 60.0

 4.0

 5.0

 PSM0530-6R8M

 6.8

 96.0

 110.0

 3.0

 3.5
