Toroid inductors FOR digital amplifier PZTL080V2/080H2 Series

Toroid inductors FOR digital amplifier PZTL080V2/080H2 Series

China Toroid inductors FOR digital amplifier PZTL080V2/080H2 Series supplier

Large Image :  Toroid inductors FOR digital amplifier PZTL080V2/080H2 Series

Product Details:

Place of Origin: Dongguan, China
Brand Name: P&Z
Certification: ISO9001:2015
Model Number: Toroid inductors FOR digital amplifier PZTL080V2/080H2 Series

Payment & Shipping Terms:

Minimum Order Quantity: 1000PCS
Price: To be confirmed
Packaging Details: Blister+Carton
Delivery Time: around 3-4 Weeks
Payment Terms: T / T in advance
Supply Ability: 500K
Detailed Product Description

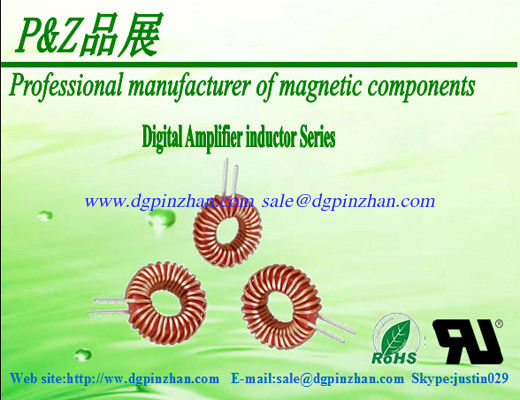

Toroid inductors FOR digital amplifier PZTL080V2/080H2 Series

           Toroid inductors FOR digital amplifier PZTL080V2/080H2 Series                Toroid inductors FOR digital amplifier PZTL080V2/080H2 Series

 PZTL080V2/080H2 Series

Spec                           DIMENSIONS (mm) TYPE
A: Max B :Max C :Ref D:Ref F :Max
PZTL080V2 24 11 10 9 1.5 Vertical
PZTL080H2 24 11 10 7 1.5 Horizontal

ELECTRICAL CHARACTERISTICS:

P&Z Part No Inductance
(uH)±20%
DC resistance
(mΩ) Ref
1SAT
(A)max
IRISE(A)max Dimension E (mm)
PZTL080V/H2-070M  7 20.0 10.0 6 1.0
PZTL080V/H2-100M  10 16.5 9.0 4 1.0
PZTL080V/H2-150M  15 13.5 7.5 2.5 0.9
PZTL080V/H2-220M  22 11.0 6.0 6.5 0.8

FEATURES:

  Closed magnetic circuit core,very low radiation noise by magnetically shielded construction.

  The iron power toroid core is low permeability, the material has low core loss and good DC saturation  characteristics.
      Thoptimal design realizes middle -high quality sound and low distortion.
  Super high DC saturation allowable current and temperature rise allowable current.
APPLICATIONS:
These toroidal chokes were developed for usein TI TAS5612,TAS5614,Zetex
    Semicnductors ZXCD1210,ST TDA7491,2TDA7198E,TDA8950TH and IR IR2092,IR2095,IR4312M ,IR2011S
    etc. evaluation module.
 Suitable as choke for digital amp. Car audio,LED TV, 5.1ch Home theater, etc.
